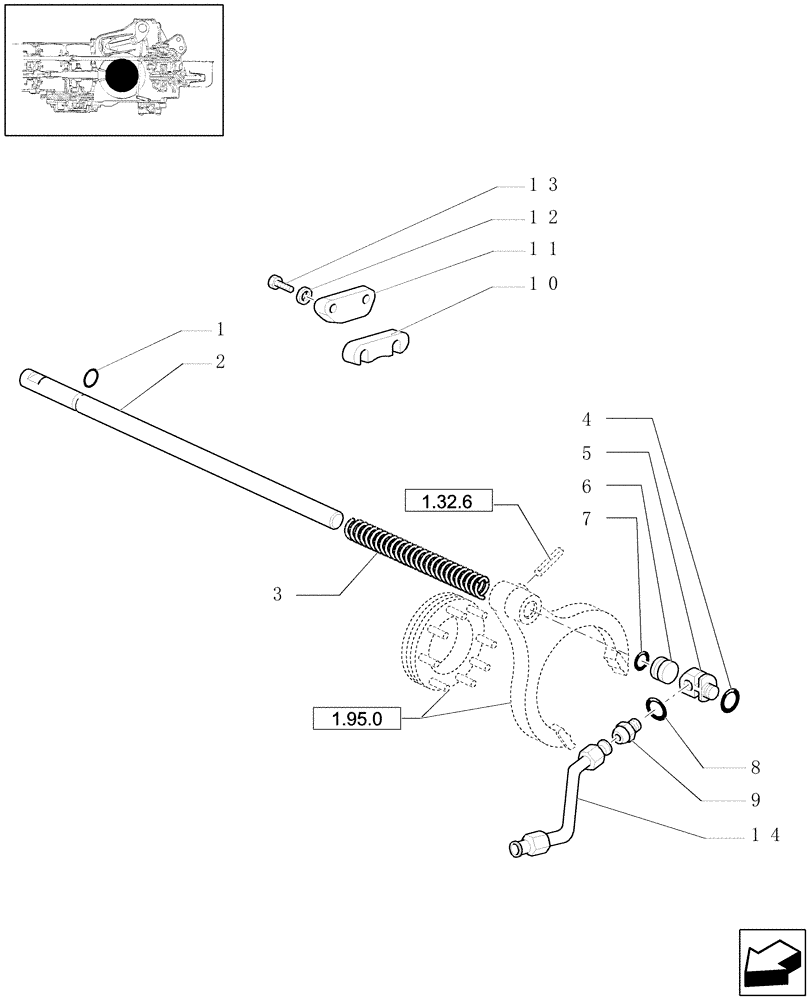

Запчасти Case IH JX1070U (1.32.6/04) - (VAR.296) (HI-LO) AND SYNCHR. REVERSING GEAR - 30 KM/H WITH DIFF. HYDR.LOCKING - ROD AND FORK (03) - TRANSMISSION

1

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

2

5160830

SHAFT

1шт.

3

5162818

SPRING,27.5mm OD x 237mm L

1шт.

4

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

5

5162820

ELBOW,M18 x 1.5 x 61mm L

1шт.

6

5162819

PISTON

1шт.

7

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

3/4"/M18

1шт.

10

5114582

SHIM,25mm OD x 0.5mm Thk

0.5mm

1шт.

11

5156350

PLATE

1шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

5162915

TUBE

1шт.
