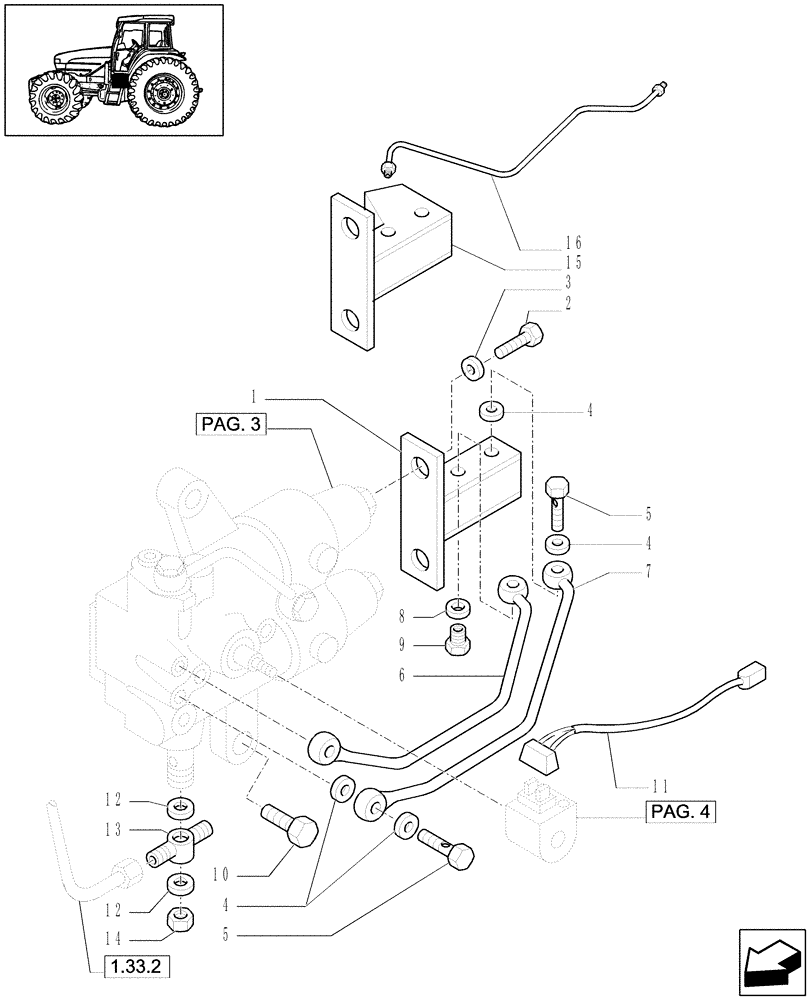

Запчасти Case IH JX1070U (1.27.4[02]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - CONTROL VALVE PIPES (03) - TRANSMISSION

1

5176431

BLOCK

, Serial Range: -C4983

1шт.

2

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

14330260

SEALING WASHER,M8.2 x 12 x 1

8шт.

5

11903711

BANJO BOLT,M8 x 1.25 x 16mm

4шт.

6

5176434

HYD TUBE

1шт.

7

5176436

HYD TUBE

1шт.

8

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

2шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

10

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

1шт.

11

5198930

WIRE HARNESS

1шт.

12

5188717

SEALING WASHER

D=20

2шт.

13

5167927

HYD CONNECTOR

1шт.

14

10184117

NUT,Banjo, M20 x 1.5, 2-Way

1шт.

15

47128497

BLOCK

, Start Serial: D4983

1шт.

16

47128502

HYD TUBE

, Start Serial: D4983

1шт.
