Запчасти Case IH JX1070U (1.27.3[02]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - DRIVEN SHAFT (03) - TRANSMISSION

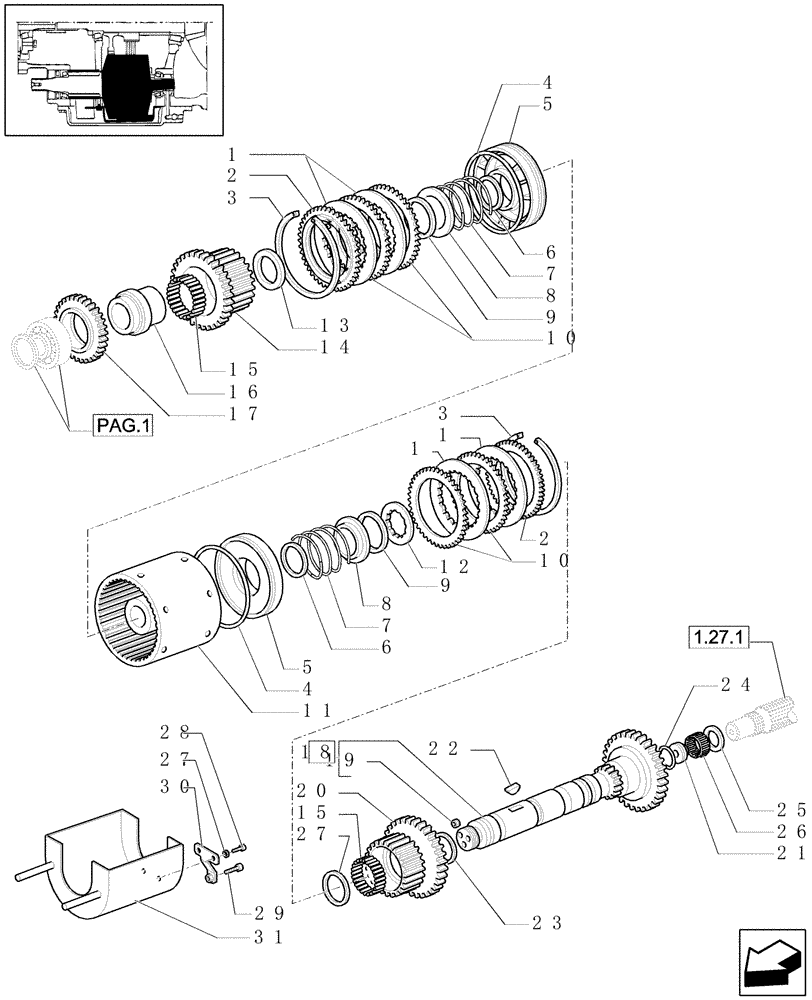

Схема запчастей Case IH JX1070U - (1.27.3[02]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - DRIVEN SHAFT (03) - TRANSMISSION
16
3
6
29
10
9
2
19
24
1
1
13
3
11
4
31
9
5
15
15
4
14
6
7
23
20
8
8
2
30
21
10
12
18
27
17
7
1
27
26
5
25
22
28

Артикул

Название

Примечание

Количество

1

5154744

CLUTCH DRIVING PLATE

10шт.

2

5188572

CLUTCH PLATE

2шт.

3

5124067

CIRCLIP

2шт.

4

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

2шт.

5

5188568

PISTON

2шт.

6

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

D = 5.6 x 3.2

2шт.

7

5171681

SPRING,Compression, 79mm OD x 61mm L

2шт.

8

5188569

CUP

2шт.

9

5124059

CIRCLIP

2шт.

10

5137544

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 1.8mm Thk

10шт.

11

5188557

HOUSING

1шт.

12

5137756

THRUST WASHER,44mm ID x 75mm OD x 4mm Thk

1шт.

13

5150602

WASHER,40.1mm ID x 75mm OD x 4mm Thk

1шт.

14

5197894

GEAR

1шт.

15

5124054

ROLLER CAGE BEARING,55mm ID x 63mm OD x 25mm W

55 x 63 x 25

2шт.

16

5150601

RING

1шт.

17

5150600

DRIVEN GEAR

1шт.

18

87324639

SHAFT

Var. 272-274, Start Serial: D5395

1шт.

18

5195434

MAIN SHAFT

, Serial Range: -C5395

1шт.

19

10269350

PLUG

M10 x 1.25

2шт.

20

5197893

GEAR

Var. 271-276-296

1шт.

21

5137540

SEAT/SLOT

1шт.

22

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

23

5194902

RING,33.9mm ID x 40mm OD x 2.43mm Thk

1шт.

24

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

25

5141500

RING,28.2mm ID x 34.5mm OD x 1mm Thk

28.2 x 34.5 x 1

1шт.

26

5107311

NEEDLE BEARING,28mm ID x 35mm OD x 27mm W

28 x 35 x 27

1шт.

27

12601270

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, PLN

2шт.

28

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

M6x14

2шт.

29

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

30

5190155

BRACKET

1шт.

31

5190154

GUARD

1шт.

Выбрано товаров: 32
