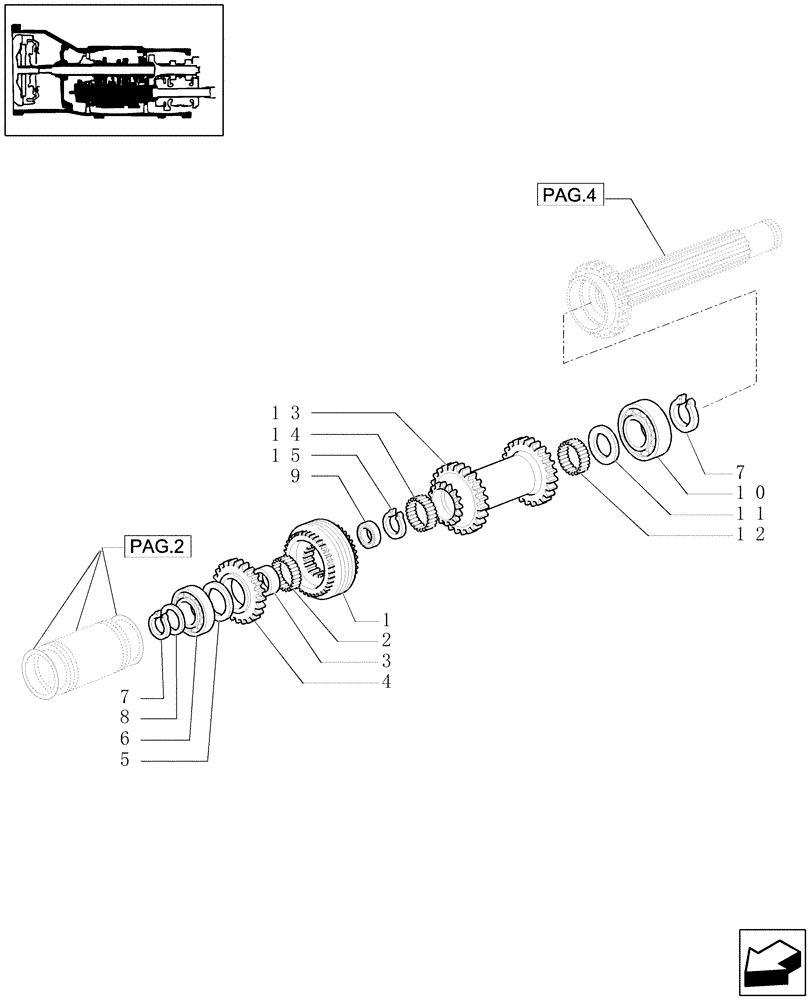

Запчасти Case IH JX1070U (1.27.1[03]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - GEARS (03) - TRANSMISSION

1

5186629

SYNCHRONIZER

Forward/Reverse

1шт.

2

5141237

ROLLER CAGE BEARING,55mm ID x 60mm OD x 30mm W

55 x 60 x 30

1шт.

3

5172775

RING RACE,50mm ID x 55mm OD x 30mm L

50 x 55 x 30

1шт.

4

5164581

DRIVING GEAR

1шт.

5

5171424

THRUST WASHER,50.1mm ID x 70mm OD x 6mm Thk

1шт.

6

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

7

11068876

SNAP RING,M40, Ext

2шт.

8

4984175

SHIM,1.000mm Thk

1шт.

8

4984177

SHIM,1.7mm Thk

1шт.

8

4984178

SHIM,1.750mm Thk

1шт.

8

4984179

SHIM,1.8mm Thk

1шт.

8

4984180

SHIM,1.900mm Thk

1шт.

8

5106521

SHIM,1.050mm Thk

1шт.

8

5106522

SHIM,1.100mm Thk

1шт.

8

5106523

SHIM,1.150mm Thk

1шт.

8

5106525

SHIM,1.850mm Thk

1шт.

8

5106526

SHIM,1.950mm Thk

1шт.

8

5188299

SHIM,2.200mm Thk

1шт.

8

5188300

SHIM,2.250mm Thk

1шт.

8

5188301

SHIM,2.300mm Thk

1шт.

8

5188302

SHIM,2.350mm Thk

1шт.

8

5188303

SHIM,2.400mm Thk

1шт.

8

5188304

SHIM,2.450mm Thk

1шт.

8

5129576

SHIM,2.500mm Thk

1шт.

9

5172777

RING RACE

45.2 x 55 x 20

1шт.

10

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

11

5137534

THRUST WASHER,40.1mm ID x 60mm OD x 6mm Thk

1шт.

12

5137527

NEEDLE BEARING,45mm ID x 50mm OD x 27mm W

45 x 50 x 27

1шт.

13

5141234

DRIVING GEAR

Var. 271 - 276

1шт.

14

5141238

ROLLER CAGE BEARING,55mm ID x 63mm OD x 20mm W

55 x 63 x 20

1шт.

15

11069076

SNAP RING,M45, Ext

1шт.
