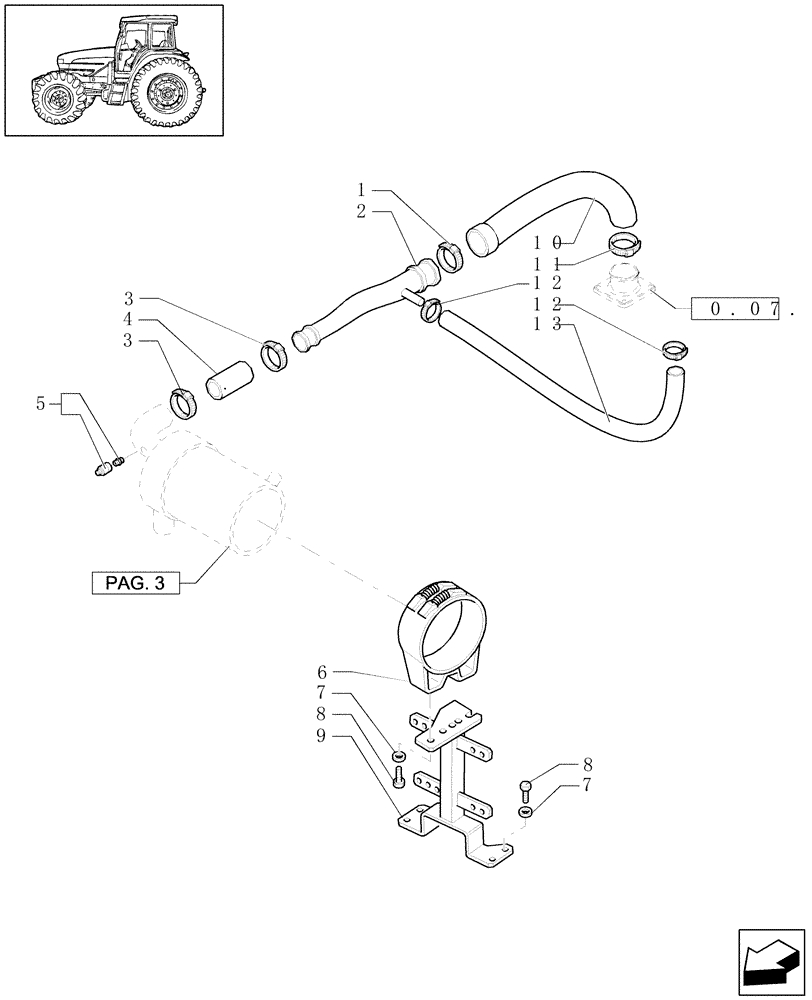

Запчасти Case IH JX1070U (1.19.1[01]) - DRY AIR CLEANER PIPES (02) - ENGINE EQUIPMENT

1

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70÷90

1шт.

2

47132062

ELBOW

1шт.

3

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

D=90÷100

2шт.

4

5169690

INTAKE AIR HOSE,89.00 mm ID x 70.00 mm

1шт.

5

5138819

INDICATOR

1шт.

6

5155242

SUPPORT

1шт.

7

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

6шт.

8

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

9

5182808

SUPPORT

1шт.

10

47130710

ELBOW

1шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60÷80

1шт.

12

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20÷30

2шт.

13

47130728

HOSE

1шт.
