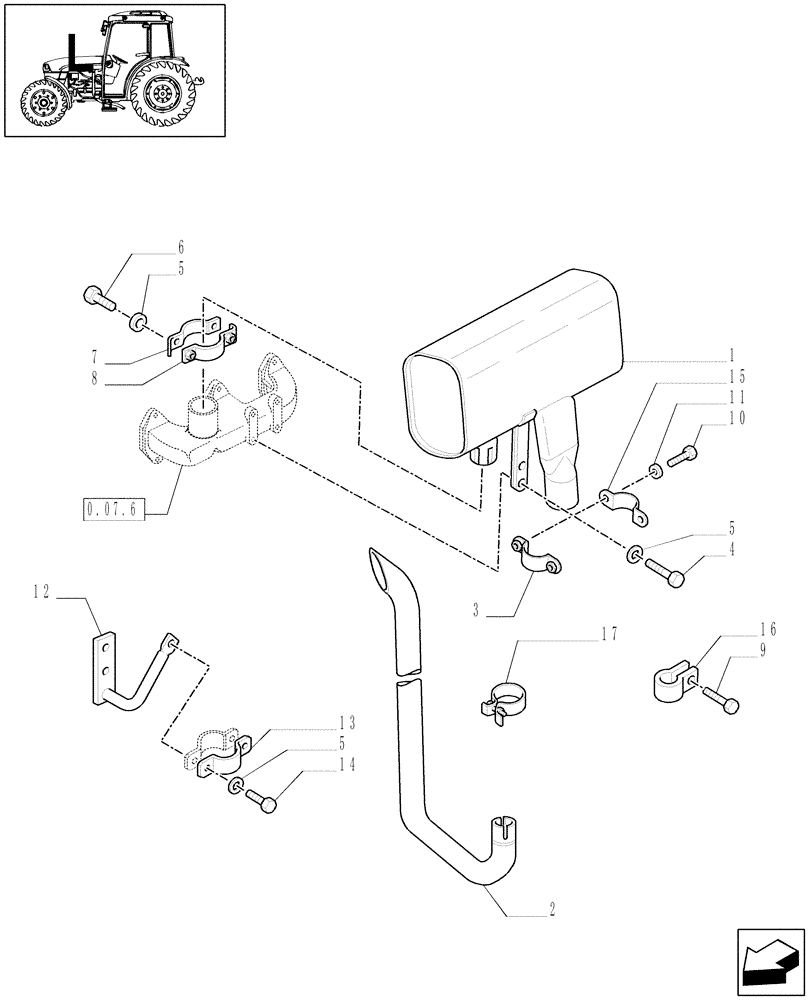

Запчасти Case IH JX1060C (1.15.1[01]) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

5172649

MUFFLER,W/ Spark Arrester

1шт.

2

47125956

EXTENSION

1шт.

3

5180679

HOSE CLIP

, Serial Range: -C5751

1шт.

4

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

5181589

HOSE CLIP

1шт.

8

5181587

CLAMP

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

, Serial Range: -C5751

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

, Serial Range: -C5751

2шт.

12

47133721

BRACKET

1шт.

13

47128046

CLAMP,59mm ID

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

15

5183964

HOSE CLIP

, Serial Range: -C5751

1шт.

16

5170258

COLLAR

1шт.

17

87667303

HOSE CLAMP,58mm - 58.5mm

, Start Serial: D5751

1шт.
