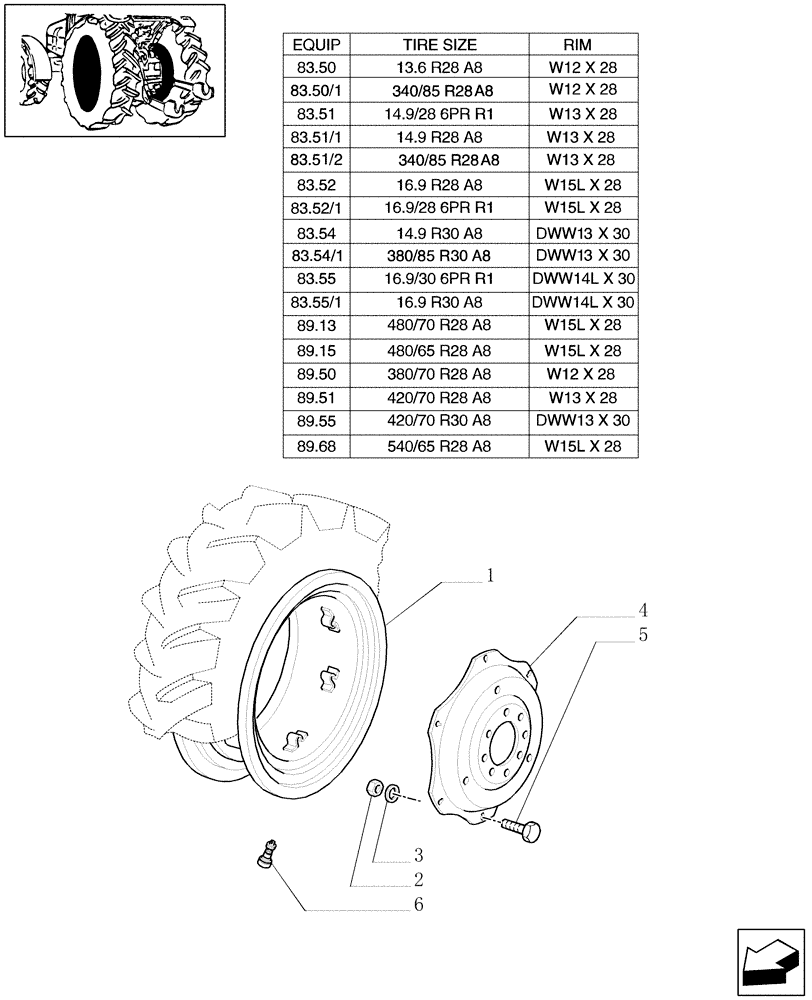

Запчасти Case IH JX1060C (83.00[02]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47128178

RIM

W12x28

2шт.

1

47130970

RIM,W13 x 28, 6 Bolts, CASE Silver

W13 x 28

2шт.

1

47128179

RIM,W15L x 28, 6 Bolts, CASE Silver

W15Lx28

2шт.

1

47128180

RIM,766.8mm Dia x 330.2mm W, 6 Bolts, CASE Silver

DWW13x30

2шт.

1

47128181

RIM,DWW14L x 30, 6 Bolts, CASE Silver

DWW14Lx30

2шт.

2

10790524

NUT,M16 x 1.5

12шт.

3

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

12шт.

4

47128166

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

5

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

12шт.

6

85700224

VALVE STEM

2шт.

6

87323751

PNEUMATIC VALVE

2шт.
