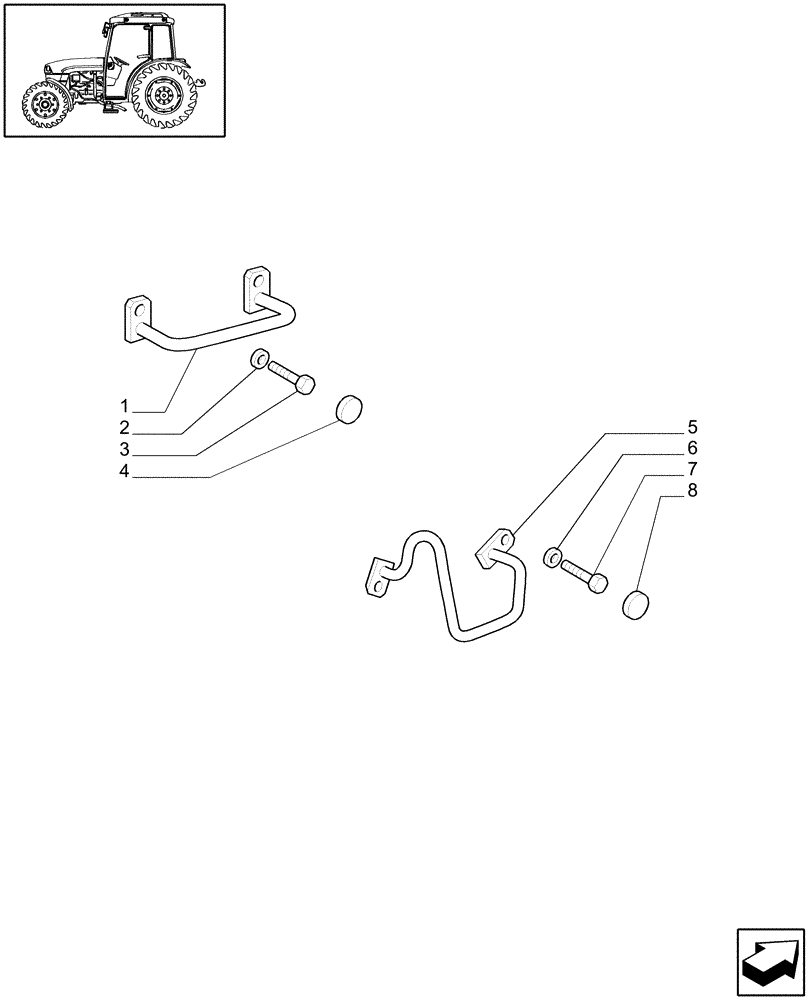

Запчасти Case IH JX1060C (1.92.85/08[02]) - (VAR.865) PASSENGER SEAT - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47126459

FOOTREST

RH

1шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

3

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

4

15811187

PROTECTION CAP

10x12

2шт.

5

47126458

FOOTREST

LH

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

5182444

SCREW

M8x25

2шт.

8

15811487

CAP,13mm x 8.5mm

2шт.
