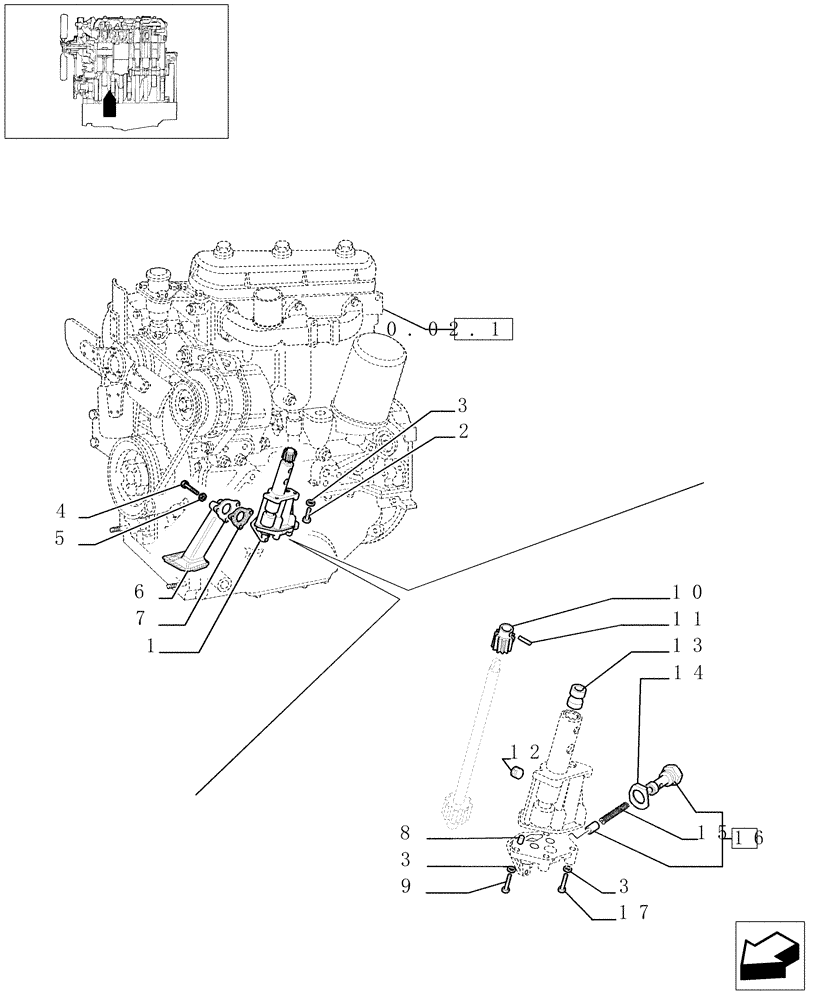

Запчасти Case IH JX1060C (0.30.0) - OIL PUMP (01) - ENGINE

1

4705827

ENGINE OIL PUMP

1шт.

4705827R

REMAN-ENG OIL PUMP

JX1060C (12/03-)

1шт.

4705827C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

11198071

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

6шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

4

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

6

4778889

TUBE

1шт.

7

98400788

GASKET,0.5mm Thk

M8 x 1.25 x 25

1шт.

8

10839510

DOWEL,M6 x 9

1шт.

9

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

10

4599726

DRIVEN GEAR

1шт.

11

4605293

PIN

1шт.

12

14325101

PLUG

1шт.

13

4673692

BUSHING

1шт.

14

4604941

PLATE

1шт.

15

4587731

SPRING

1шт.

16

4707153

CHECK VALVE

1шт.

17

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.
