Запчасти Case IH JX1060C (1.82.7/10[06]) - (VAR.164) 3 REMOTE VALVES FOR EDC (1 STD+1 W/FL.+1 W/FL.) - QUICK COUPLING - D5484 (07) - HYDRAULIC SYSTEM

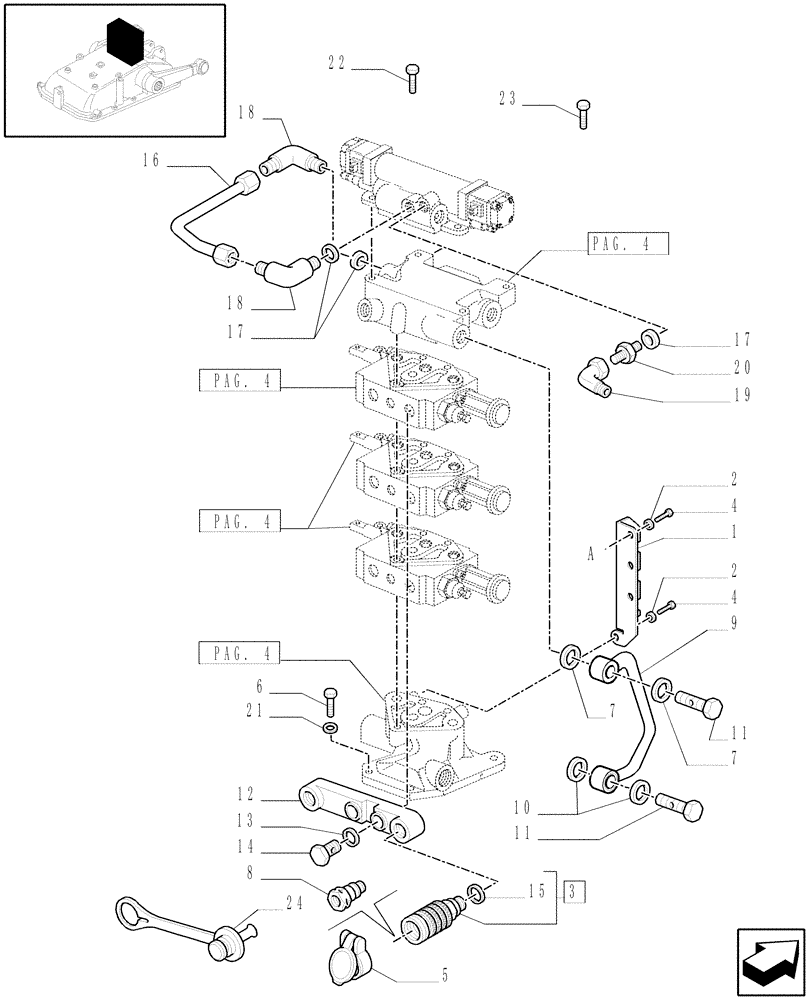

Схема запчастей Case IH JX1060C - (1.82.7/10[06]) - (VAR.164) 3 REMOTE VALVES FOR EDC (1 STD+1 W/FL.+1 W/FL.) - QUICK COUPLING - D5484 (07) - HYDRAULIC SYSTEM
16
17
12
7
4
11
3
6
7
a
17
18
11
4
23
8
20
10
22
2
15
9
13
2
14
pag. 4
19
18
21
pag. 4
1
5
pag. 4
pag. 4
24

Артикул

Название

Примечание

Количество

1

5179944

CONSOLE

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

8шт.

1534623C1

SEAL KIT

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

47132126

DUST CAP,Green

Green

2шт.

5

47132127

DUST CAP,Blue

2шт.

5

47132128

DUST CAP,Brown

Brown

2шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

8

5101741

QUICK MALE COUPLING

2шт.

9

5174118

RIGID TUBE

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

12

5185533

HYD CONNECTOR

3шт.

13

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

6шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

16

5174040

RIGID TUBE

1шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

18

80216773

ELBOW

2шт.

19

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

20

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

21

5188390

SPACER

1шт.

22

16290124

SCREW,M12 x 1.25 x 45mm, Cl 8.8

1шт.

23

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

24

5186723

DUST CAP,24mm, Black

Black, Std.

1шт.

Выбрано товаров: 27
