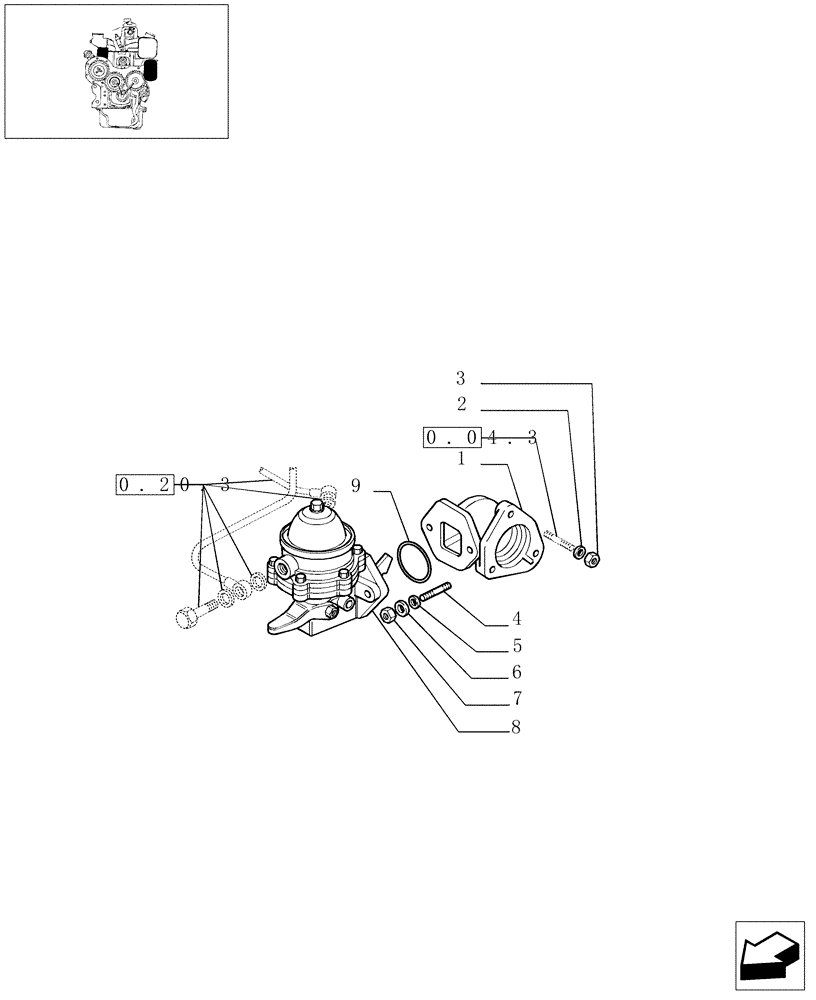

Запчасти Case IH JX1060C (0.20.1) - FUEL PUMP (01) - ENGINE

1

98467028

SUPPORT

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

3

15500121

NUT

M10 x 1,25

3шт.

4

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 22

2шт.

5

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

6

17798274

WASHER

8.2x14.9

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

4757882

FUEL PUMP

ASSY

1шт.

9

4847092

GASKET

1шт.
