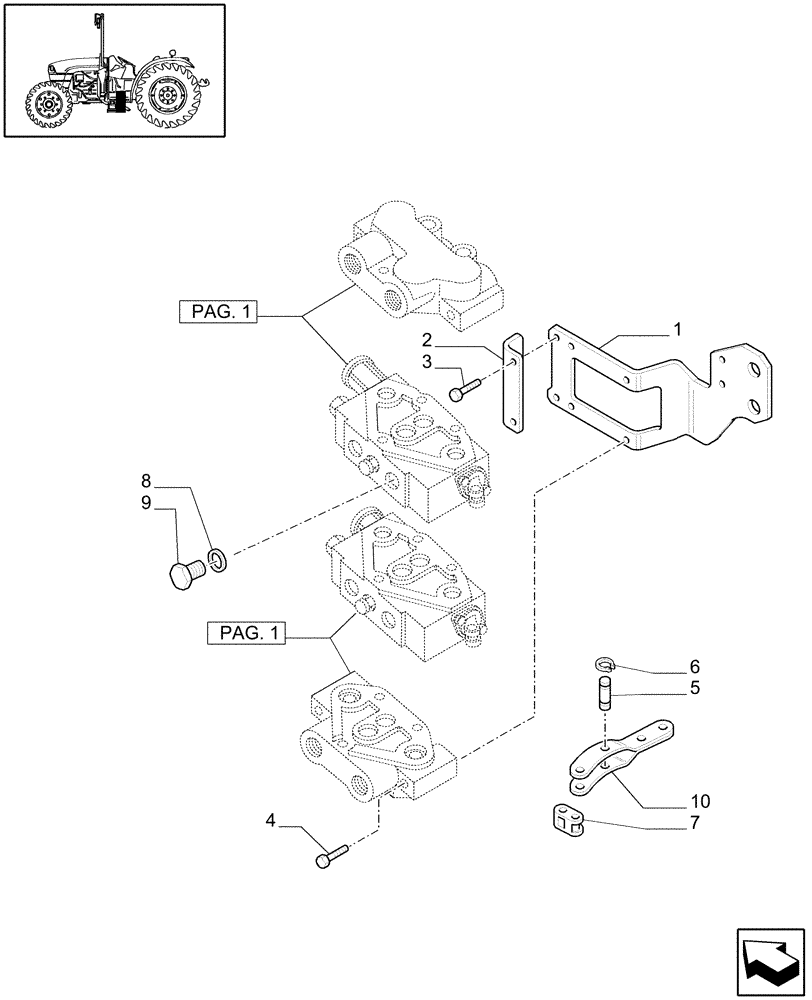

Запчасти Case IH JX1060C (1.82.7/08[02]) - (VAR.124-125-157-159) 2 CONTROL VALVES WITH JOYSTICK - C5484 (07) - HYDRAULIC SYSTEM

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5172456

PIN,6mm OD x 20mm L

2шт.

6

11087776

CIRCLIP,Ext., M6, BLO

2шт.

7

5116896

LINK,19.05mm Pitch

2шт.

8

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

22x28

7шт.

9

10300840

PLUG

4шт.

10

5178877

CLEVIS

2шт.
