(1.82.7/05[03]) - (VAR.028) 2 REMOTE VALVES FOR MID-MOUNT AND EDC - PIPES - C5484

Запчасти Case IH JX1060C (1.82.7/05[03]) - (VAR.028) 2 REMOTE VALVES FOR MID-MOUNT AND EDC - PIPES - C5484 (07) - HYDRAULIC SYSTEM

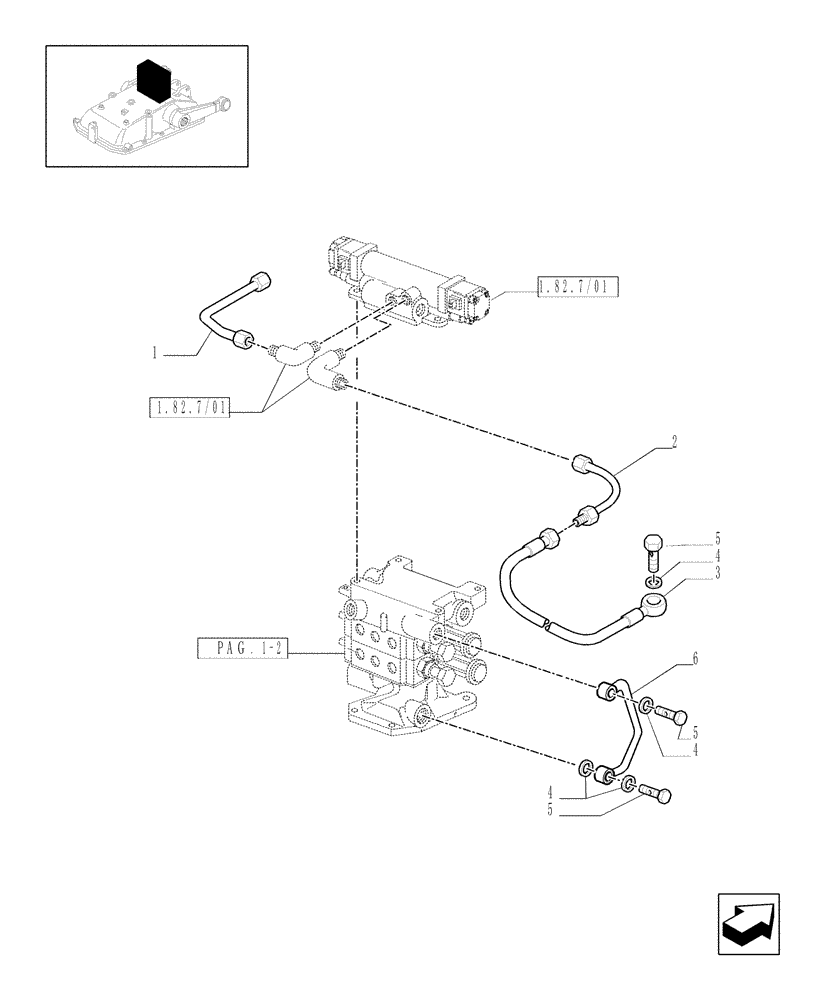

Схема запчастей Case IH JX1060C - (1.82.7/05[03]) - (VAR.028) 2 REMOTE VALVES FOR MID-MOUNT AND EDC - PIPES - C5484 (07) - HYDRAULIC SYSTEM
4
1
g
5
5
6
.
1.82.7/01
1.82.7/01
4
2
a
1-2
p
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174040

RIGID TUBE

D=6

1шт.

2

47131635

RIGID TUBE

CENTER PILOT

1шт.

3

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110 MM

1шт.

Front Pilot Hose

1шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

4шт.

5

10185011

BANJO BOLT,M12 x 1.25 x 23mm

3шт.

6

5174038

RIGID TUBE

CAP, HH, CL 8.8, M6x1x14

1шт.

Выбрано товаров: 7
