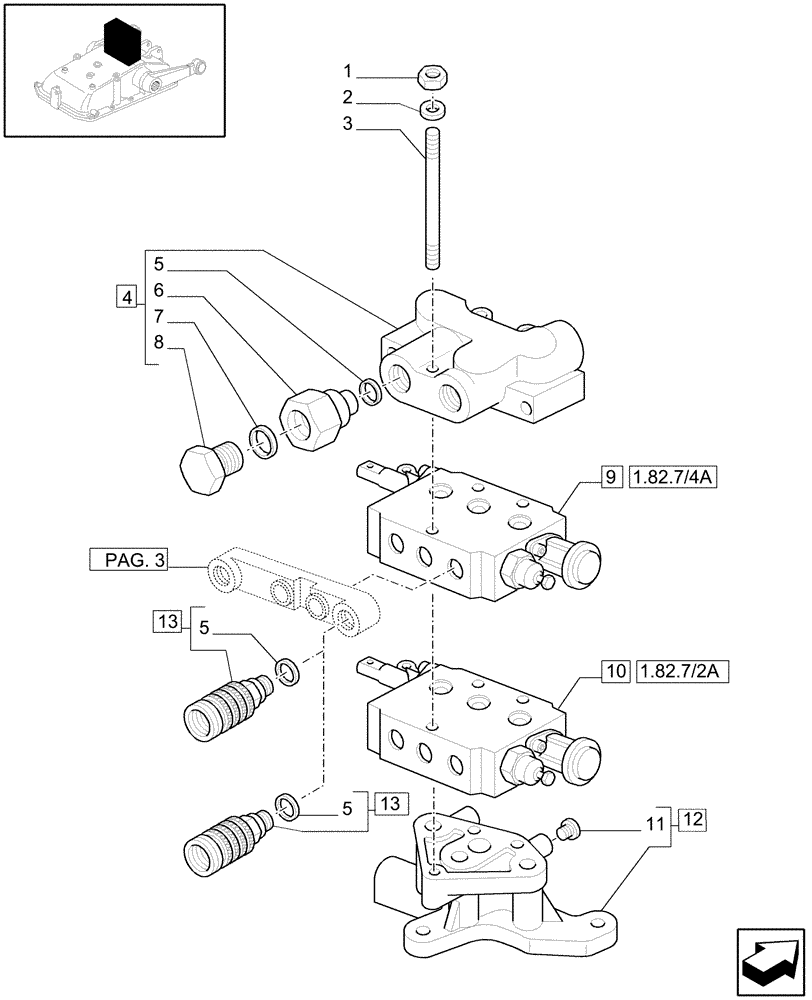

Запчасти Case IH JX1060C (1.82.7/04[01]) - (VAR.027) 2 REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM
![Схема запчастей Case IH JX1060C - (1.82.7/04[01]) - (VAR.027) 2 REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM](https://partsell.ru/storage/images/caseih/632082.png)
10
12
1
9
2
7
1.82.7/2a
1.82.7/4a
5
3
13
5
4
11
6
5
pag. 3
13
8
№
Артикул
Название
Примечание
Количество
1534623C1
SEAL KIT
1шт.
1
5116857
NUT,3/8" - 24
3/8"
6шт.
2
12648304
WASHER,10.2mm ID x 17mm OD x 1.5mm Thk
DIA.MM.10
3шт.
3
5151506
THREADED ROD,3/8" - 24 x 6-5/8"
3шт.
4
5173758
SUPPORT
ASSY
1шт.
5
14438085
O-RING,19.3mm ID x 2.4mm
1шт.
6
5174043
HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L
1шт.
7
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
90 Duro, .924" ID x .116" Thk
1шт.
8
83957506
PLUG,3/4"
1шт.
9
5171281
CONTROL VALVE
ASSY
1шт.
10
47129231
CONTROL VALVE
ASSY
1шт.
11
10269650
PLUG
M16
1шт.
12
5176800
FLANGE
1шт.
13
5179557
COUPLING, QUICK, FEM
STND., include p/n 1534623C1
1шт.
1534623C1
SEAL KIT
1шт.
Выбрано товаров: 15
