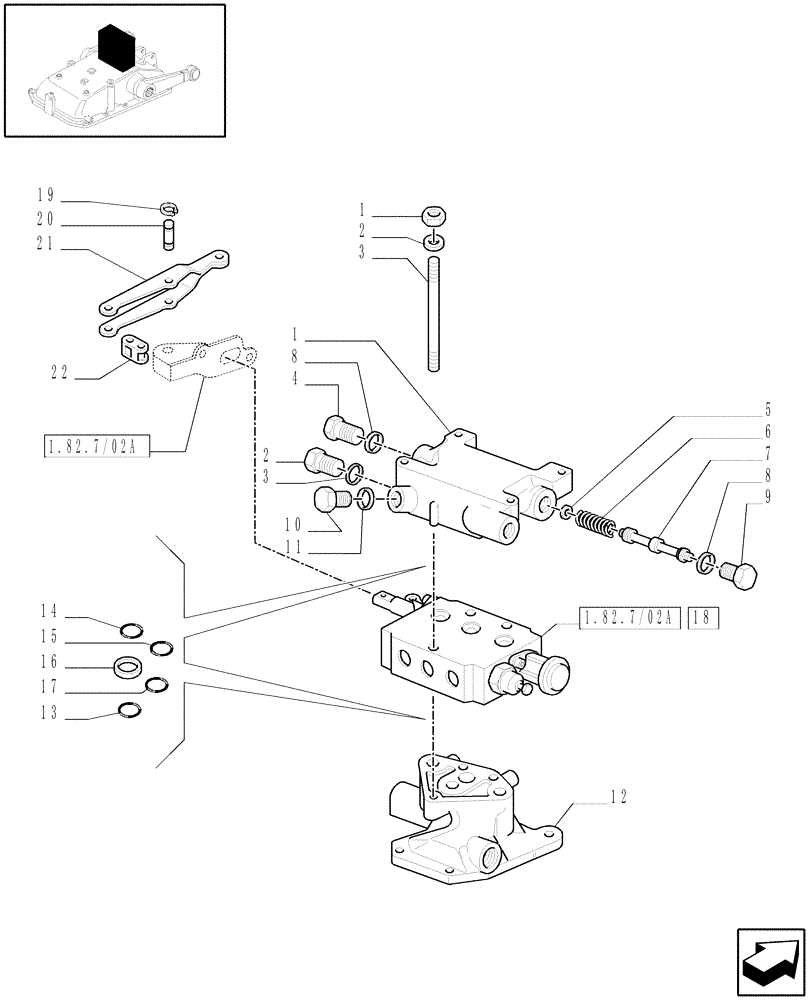

Запчасти Case IH JX1060C (1.82.7/03[01]) - (VAR.026) 1 REMOTE VALVE FOR MID-MOUNT AND MDC - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM

1

5173961

FLANGE

INCL. REF. 2 TO 11

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

12

5176480

FLANGE

13

1шт.

13

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

14

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72MM

6шт.

15

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2MM

2шт.

16

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24MM

2шт.

17

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

18

47129231

CONTROL VALVE

1шт.

19

11087776

CIRCLIP,Ext., M6, BLO

1шт.

20

5172456

PIN,6mm OD x 20mm L

1шт.

21

5178183

CLEVIS

1шт.

22

5116896

LINK,19.05mm Pitch

1шт.
