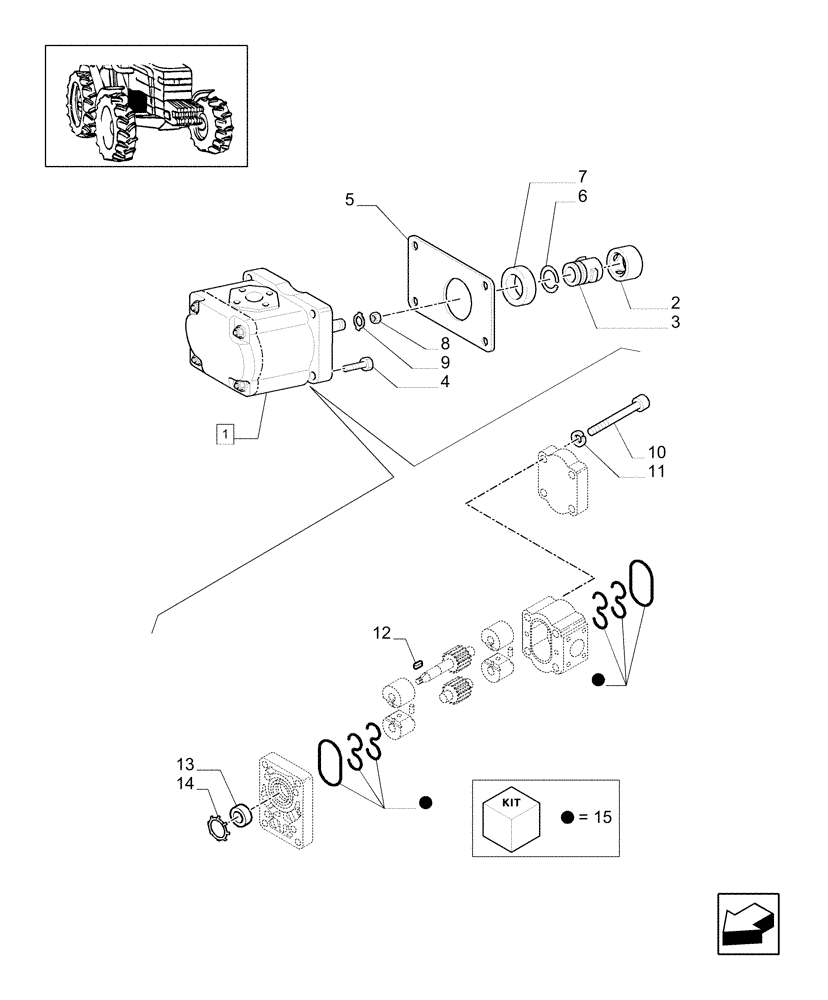

Запчасти Case IH JX1060C (1.82.3) - LIFTER PUMP (07) - HYDRAULIC SYSTEM

1

5179726

HYDRAULIC PUMP

ASSY

1шт.

84530167R

REMAN-HYD PUMP

JX1060C TRACTOR (12/03-6/08), JX1070C, JX1075C Both (12/03-); Reman for New P/N 5179726

1шт.

84530167C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5179726R

REMAN-HYD PUMP

JX1060C, JX1070C, JX1075C, All (12/03)

1шт.

5179726C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

5118569

COUPLING

1шт.

3

5118570

HUB

1шт.

4

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

4шт.

5

5167989

SEAL,0.8mm Thk

1шт.

6

13398376

SNAP RING,M40, Int

1шт.

7

5118568

CENTERING RING

Centering

1шт.

8

8273919

NUT

7/16"

1шт.

9

8273920

LOCK WASHER

1шт.

10

5120497

SCREW,Sq Hd, M10 x 1.25 x 114mm

4шт.

11

76026107

WASHER

4шт.

12

8273918

KEY

1шт.

13

7984178

KIT

1шт.

14

9967847

LOCK WASHER

1шт.

15

9967849

SEAL KIT

1шт.
