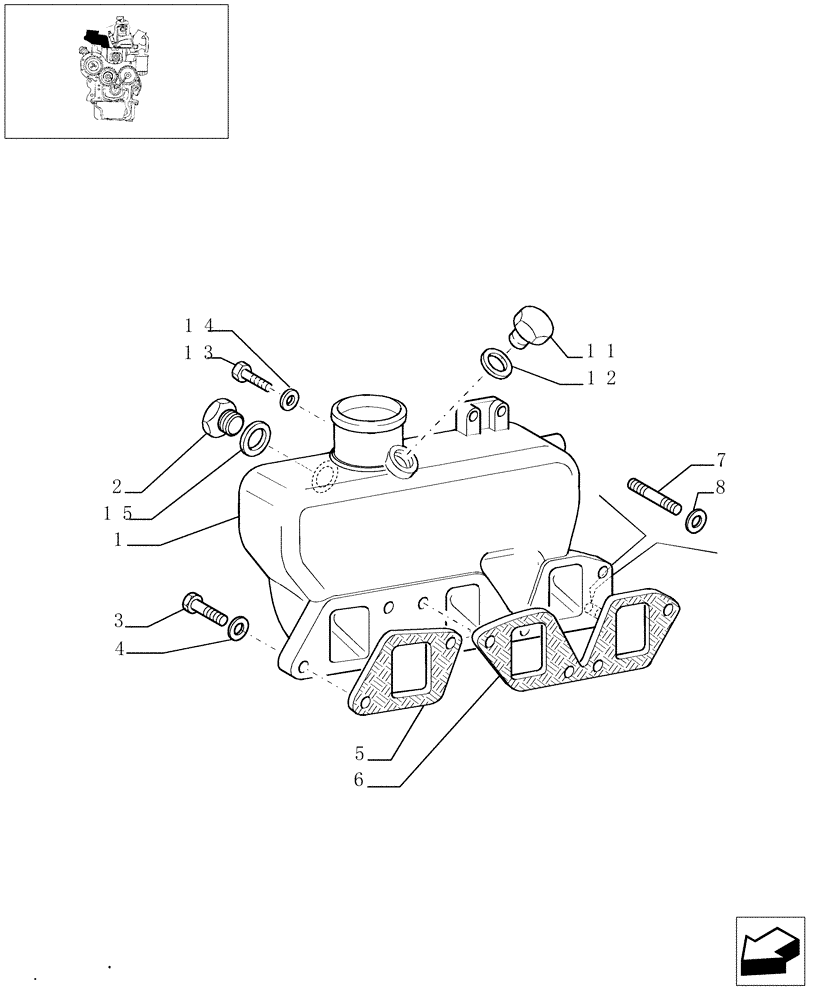

Запчасти Case IH JX1060C (0.07.1) - INTAKE MANIFOLD (01) - ENGINE

1

504047535

INLET MANIFOLD

1шт.

2

44903406

PLUG

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

3

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

4

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

4шт.

5

98400791

GASKET,0.8mm Thk

1шт.

6

4851921

GASKET,0.8mm Thk

1шт.

7

13543321

STUD

M8X20

1шт.

8

2852057

SEALING WASHER,M8 x 12 x 1 Thk

8X12

1шт.

11

4827588

PLUG

M20

1шт.

12

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20X26

1шт.

13

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

14

10297760

COPPER WASHER,M6.2 x 12 x 1, Copper

2шт.

15

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.
