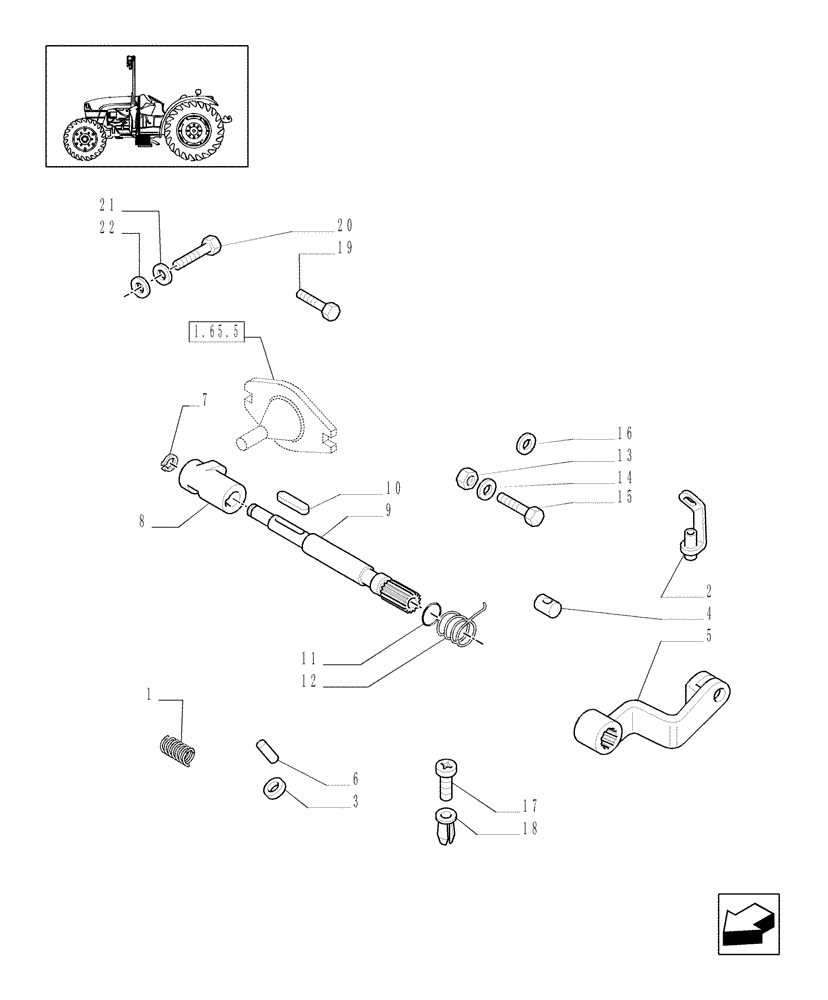

Запчасти Case IH JX1060C (1.67.2) - HANDBRAKE CONTROL (05) - REAR AXLE

1

4994342

SPRING,8mm OD x 30mm OAL

L=30

1шт.

2

47132219

ROD-TIP,14mm OD x 50mm L

1шт.

3

14488401

WASHER

5x10

2шт.

4

47132201

PIN,21mm OD x 26mm L

1шт.

5

47132185

LEVER

1шт.

6

14162370

ROLL PIN

1шт.

7

11066876

SNAP RING,M20, Ext

1шт.

8

47132166

LEVER,OD 44mm, 66mm L

1шт.

9

47132169

PIN,27mm OD x 280mm L

1шт.

10

10619420

KEY,6mm x 6mm x 50mm

6x6x50

1шт.

11

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

12

5178121

SPRING,59mm OD

1шт.

13

15503711

LOCK NUT,M10 x 1.25

1шт.

14

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

15

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

17

16084304

SELF-TAP SCREW,Pan Hd, M5 x 16

2шт.

18

14115781

GROMMET

2шт.

19

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

20

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

20

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

1шт.

21

13578424

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

D=8

1шт.

22

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.
