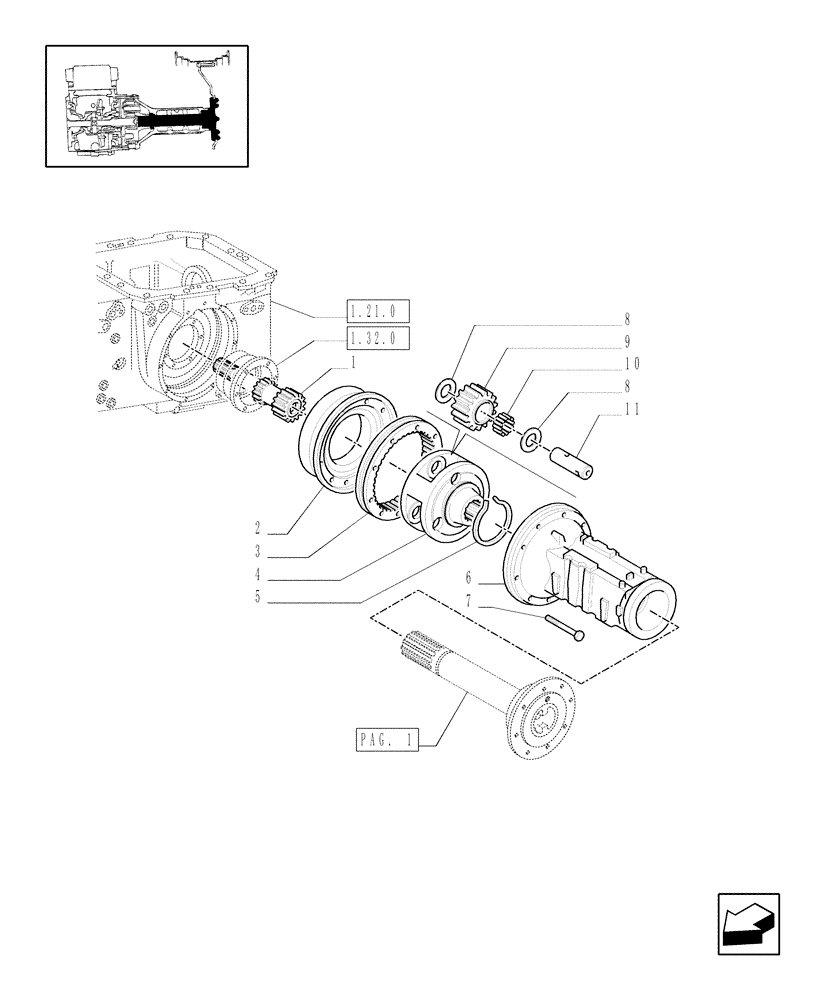

Запчасти Case IH JX1060C (1.48.1[04]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5180626

HALF SHAFT

LH

1шт.

1

5180629

HALF SHAFT

RH

1шт.

2

5172087

SPACER,175mm ID x 337mm OD x 53mm L

2шт.

3

5178624

RING GEAR

2шт.

4

5125331

CARRIER

2шт.

5

4998883

CIRCLIP,112mm ID x 119mm OD

D=119

2шт.

6

5178637

FINAL DRIVE HOUSING

2шт.

7

15978121

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

2шт.

8

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

9

5178623

GEAR

12шт.

10

5124311

ROLLER BEARING,35.7mm ID x 49.7mm OD x 32mm W

12шт.

11

5124312

PIN,35.7mm OD x 82mm L

6шт.
