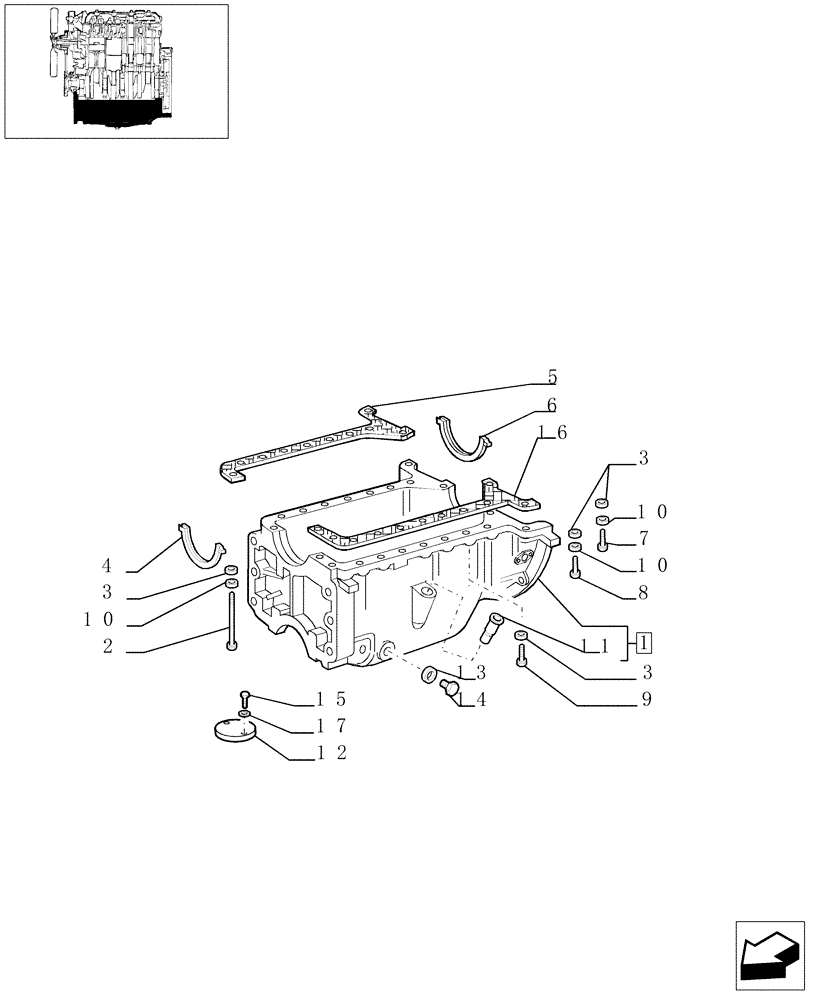

Запчасти Case IH JX1060C (0.04.2) - OIL PAN (01) - ENGINE

1

99450593

ENGINE OIL PAN

has smooth front bottom hole

1шт.

with two lower holes on the front flange, diameter M18

1шт.

1

504086197

ENGINE OIL PAN

has smooth front bottom hole

1шт.

with two lower holes on the front flange, diameter M20

1шт.

2

4607933

BOLT,Hex, M10 x 1.25 x 262mm

3шт.

2

4607934

SCREW,Hex, M10 x 1.25 x 178mm

M10 x 1.25 x 178

2шт.

3

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

D=10X18

21шт.

4

4031577

SEAL,10mm Thk

Front

1шт.

5

500347231

OIL SEAL

LH with 11 holes

1шт.

6

4600753

SEAL

Rear

1шт.

7

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

2шт.

8

15971434

BOLT,Hex, M10 x 1.25 x 80mm, Cl 10.9

5шт.

9

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

9шт.

10

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

D=10X18

21шт.

11

4694949

TUBE

1шт.

12

98413492

COVER

1шт.

13

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

14

2852318

PLUG,Rd Hd, Int Hex, M22 x 1.5 x 16mm, ORB

M22 x 1.5

1шт.

15

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

16

500347230

OIL SEAL

RH with 10 holes

1шт.

17

11199279

BELLEVILLE WASHER,M5 Bolt Size x 10mm OD x 0.5mm Thk

M5 x 10 x 0.5

2шт.
