Запчасти Case IH JX1060C (1.43.0/02) - (VAR.169-169/1) 4WD FRONT MUDGUARDS- SUPPORTS (04) - FRONT AXLE & STEERING

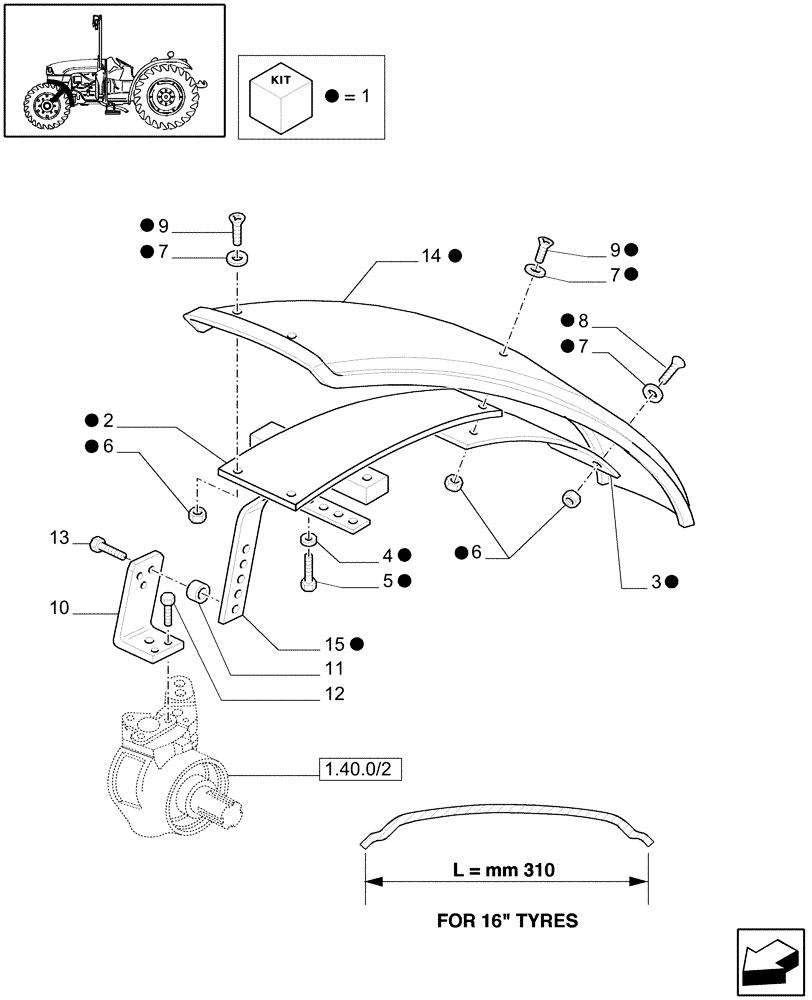

Схема запчастей Case IH JX1060C - (1.43.0/02) - (VAR.169-169/1) 4WD FRONT MUDGUARDS- SUPPORTS (04) - FRONT AXLE & STEERING
1
7
13
1
1
15
1.40.0/2
1
2
9
7
1
1
1
3
1
10
11
9
1
1
4
1
6
1
8
7
6
5
14
12
1
1
1
1

Артикул

Название

Примечание

Количество

1

5185420

FRONT FENDER

LH ASSY

1шт.

1

5185421

FRONT FENDER

RH ASSY

1шт.

2

5179697

FRAME

RH

1шт.

2

5179698

FRAME

LH

1шт.

3

5179701

REINFORCEMENT

LH

1шт.

3

5179705

REINFORCEMENT

RH

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

6

12574511

LOCK NUT,M10 x 1.25, Cl 8

8шт.

7

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

8

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

9

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

6шт.

10

5185292

SUPPORT

L/BRAKE

2шт.

10

5185293

SUPPORT

W/BRAKE

2шт.

11

5166193

SPACER,13mm ID x 40mm OD x 28mm L

4шт.

12

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

W/BRAKE

8шт.

12

14233930

SCREW,M10 x 1.25 x 45mm

M10x45, L/BRAKE

6шт.

13

14275134

LOCK BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

4шт.

14

5179784

FRONT FENDER

2шт.

15

5179710

PILLAR

2шт.

Выбрано товаров: 20
