(1.42.0[02]) - SERVO-ASSISTED STEERING HYDRAULIC SYSTEM

Запчасти Case IH JX1060C (1.42.0[02]) - SERVO-ASSISTED STEERING HYDRAULIC SYSTEM (04) - FRONT AXLE & STEERING

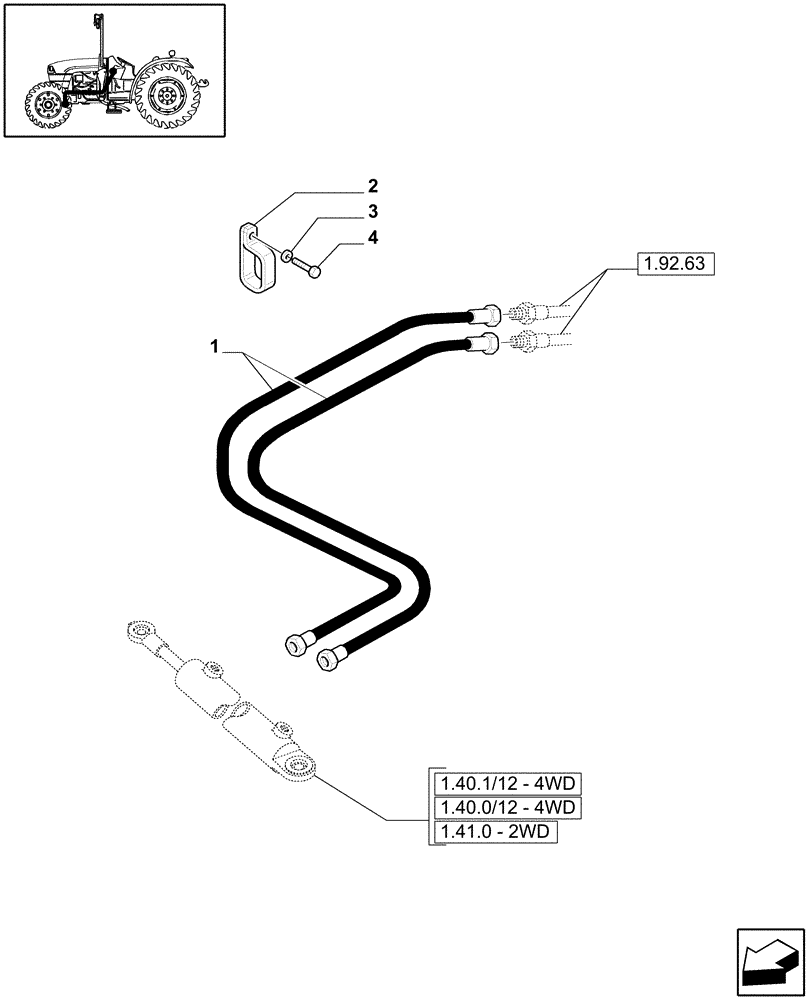

Схема запчастей Case IH JX1060C - (1.42.0[02]) - SERVO-ASSISTED STEERING HYDRAULIC SYSTEM (04) - FRONT AXLE & STEERING
1.92.63
2
1.41.0 - 2wd
1
1.40.0/12 - 4wd
3
4
1.40.1/12 - 4wd
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5170482

FLEXIBLE HOSE,8mm ID x 1600mm L, SAE 100R1

2WD

2шт.

1

5184563

HOSE,8.00 mm ID x 1700.00 mm, SAE 100R2AT, SAE J514

4WD

2шт.

2

5158384

COLLAR

2шт.

3

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

Выбрано товаров: 5
