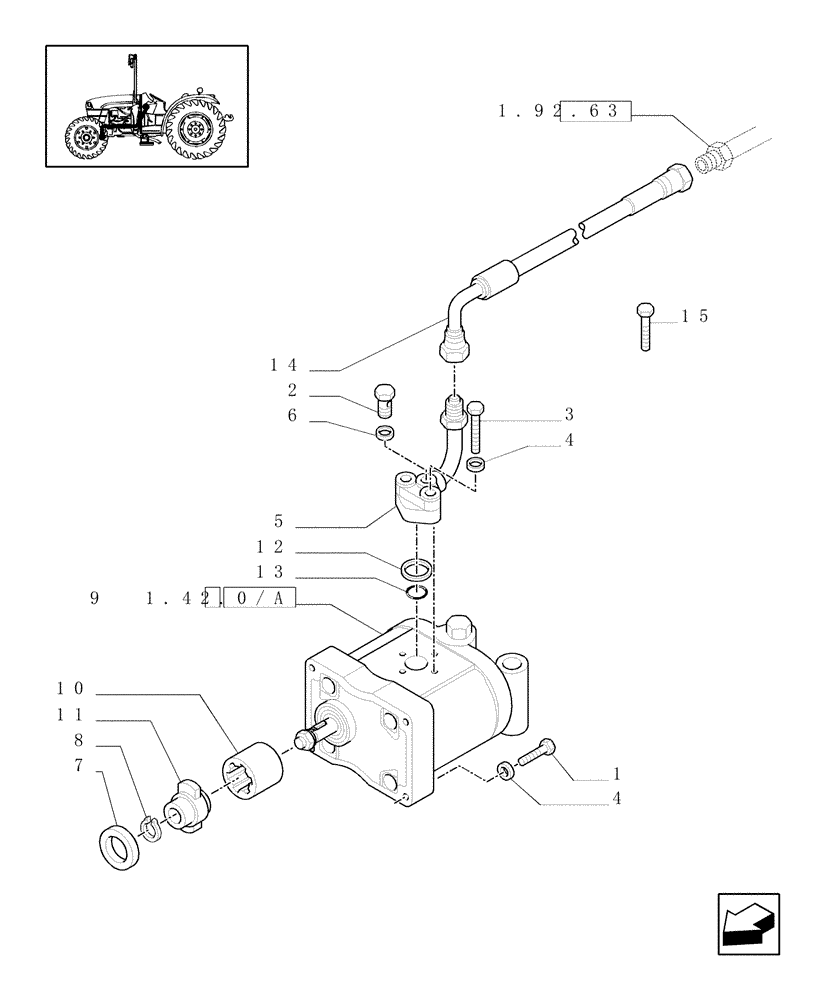

Запчасти Case IH JX1060C (1.42.0[01]) - SERVO-ASSISTED STEERING HYDRAULIC SYSTEM (04) - FRONT AXLE & STEERING

1

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

4шт.

2

11903114

PLUG,M10 x 1.25 x 11

1шт.

3

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

5

5183196

RIGID TUBE

1шт.

6

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10x14

1шт.

7

5118568

CENTERING RING

Centering

1шт.

8

13398376

SNAP RING,M40, Int

1шт.

9

5179730

HYDRAULIC PUMP

ASSY

1шт.

5179729R

REMAN-HYD PUMP

JX1060C (12/03-6/08), JX1070C, JX1075C, BOTH (12/03-), Reman for New PN 5179730

1шт.

5179729C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

5118569

COUPLING

1шт.

11

5118570

HUB

1шт.

12

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

13

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

14

5179095

FLEXIBLE HOSE

L=635

1шт.

15

13797813

SCREW,M6 x 10mm

M6x10

1шт.
