Запчасти Case IH JX1060C (1.40.5/05[03]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (30KM/H) - PIPES (04) - FRONT AXLE & STEERING

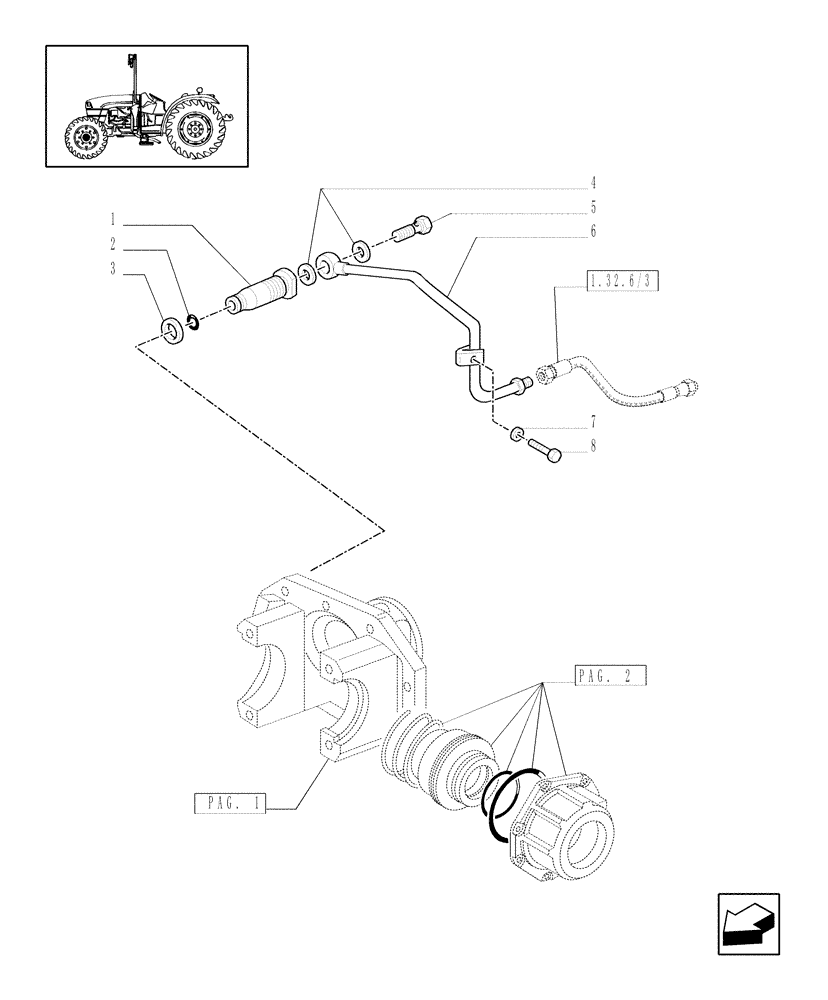

Схема запчастей Case IH JX1060C - (1.40.5/05[03]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (30KM/H) - PIPES (04) - FRONT AXLE & STEERING
pag. 2
4
pag. 1
1.32.6/3
2
1
5
6
3
7
8

Артикул

Название

Примечание

Количество

1

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

2

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

1шт.

4

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14x20x1.5

2шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

6

47124182

RIGID TUBE

1шт.

Выбрано товаров: 6
