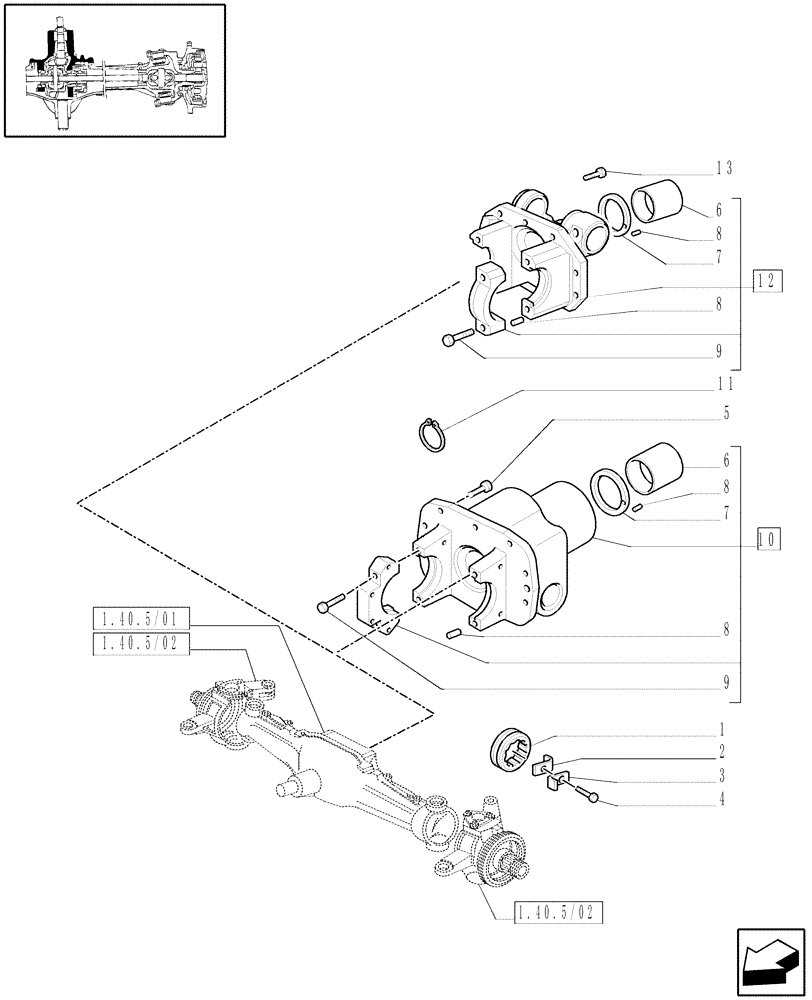

Запчасти Case IH JX1060C (1.40.5/05[01]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (30KM/H) - PIPES (04) - FRONT AXLE & STEERING

1

4966240

BEARING LOCK NUT,M95 x 2, 15T

ASSY

1шт.

2

4966243

ADJUSTING PLATE

1шт.

3

562659

PLATE

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

, Serial Range: -HJH055056

5шт.

5

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

, Serial Range: -HJH055056

3шт.

5

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

, Serial Range: -HJH055056

1шт.

5

14275821

SCREW

M12x110, Serial Range: -HJH055056

1шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

4966244

PIN,5mm OD x 15mm L

5шт.

9

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

10

5198485

SUPPORT

ASSY, Serial Range: -HJH055056

1шт.

11

11062476

SNAP RING,M90, Int

1шт.

12

87335147

SUPPORT

, Start Serial: HJH055057

1шт.

13

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12x1.5x120, Start Serial: HJH055057

2шт.

13

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12x1.5x45, Start Serial: HJH055057

6шт.

13

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

M12x1.5x35, Start Serial: HJH055057

3шт.
