(1.40.1/03) - (VAR.323) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - HUB

Запчасти Case IH JX1060C (1.40.1/03) - (VAR.323) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - HUB (04) - FRONT AXLE & STEERING

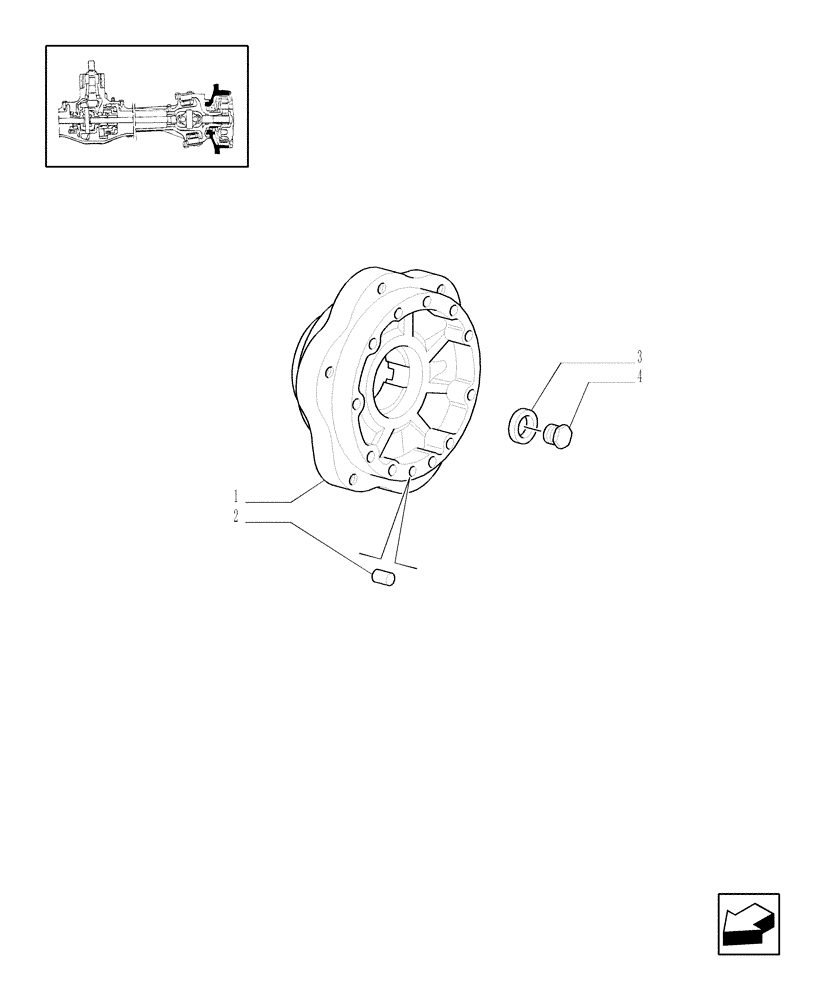

Схема запчастей Case IH JX1060C - (1.40.1/03) - (VAR.323) STANDARD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - HUB (04) - FRONT AXLE & STEERING
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5178631

HUB

2шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

4шт.

3

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.
