(1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT

Запчасти Case IH JX1060C (1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING

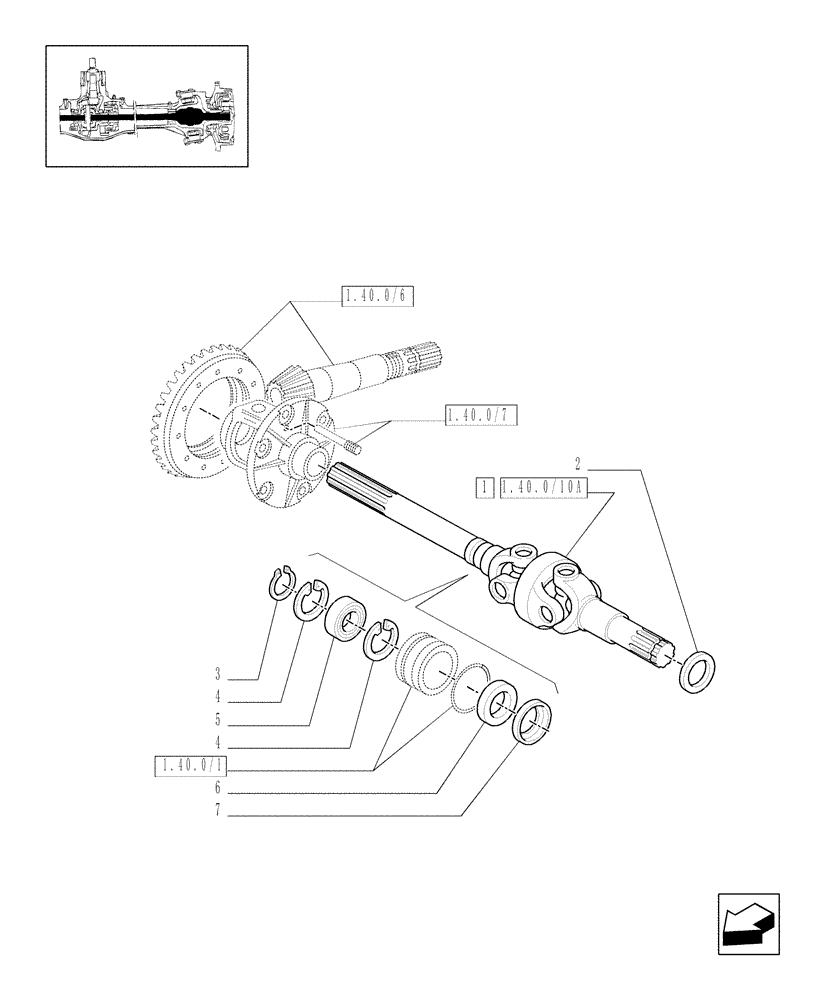

Схема запчастей Case IH JX1060C - (1.40.0/10[01]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND SHAFT (04) - FRONT AXLE & STEERING
1.40.0/10a
6
1.40.0/6
7
2
3
4
4
1.40.0/1
5
1.40.0/7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186653

AXLE-SHAFT, ARTICULA

LH

1шт.

1

5186652

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

47x65x16.5

2шт.

3

80370003

CIRCLIP

Ext, M30

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.
