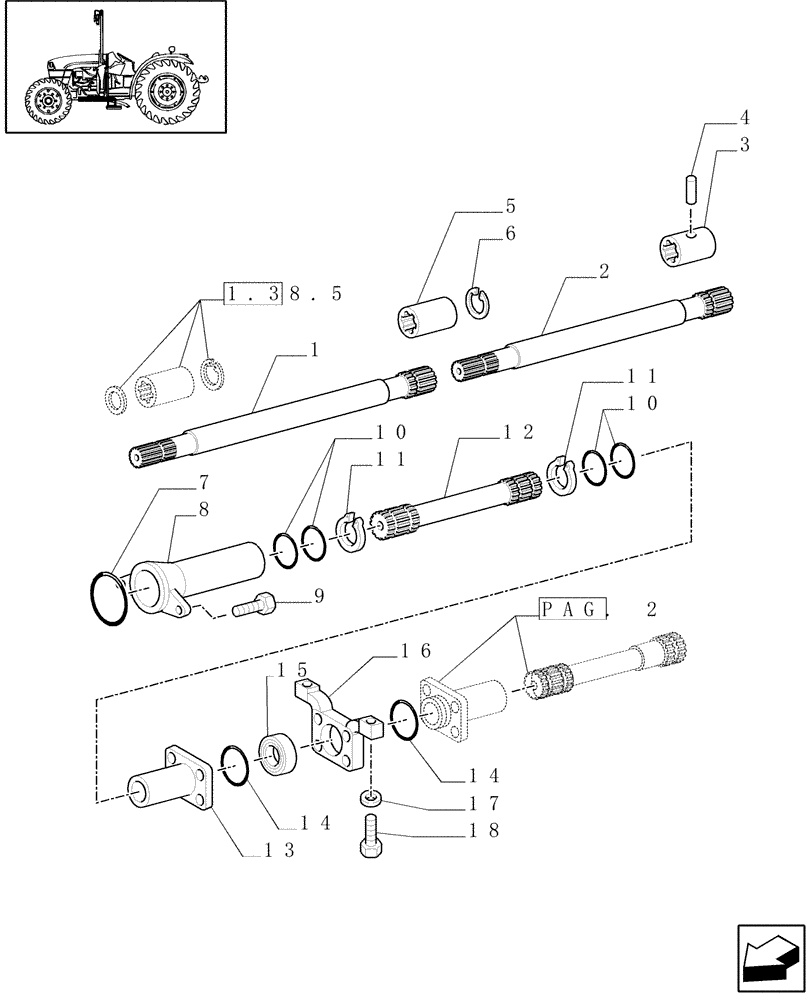

Запчасти Case IH JX1060C (1.38.5/01[01]) - (VAR.445-449) 4WD RICE FIELD VERSION - TRANSMISSION SHAFTS (04) - FRONT AXLE & STEERING

1

5180795

SHAFT

1шт.

2

5162816

PROPELLER SHAFT

REAR

1шт.

3

5146936

SPLINED COUPLING

REAR

1шт.

4

10334420

DOWEL,M4 x 38

1шт.

5

4997312

SLEEVE,10T

CENTER

1шт.

6

11067776

SNAP RING,M29, Ext

2шт.

7

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

8

47124556

SLEEVE,57mm ID x 66mm OD x 104.0mm L

FRONT

1шт.

9

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

4шт.

11

11069676

SNAP RING,M56, Ext

D=56

2шт.

12

5181877

SHIELD

FRONT

1шт.

13

5181882

FLANGE

FRONT

1шт.

14

86012299

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

1шт.

15

24905120

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

1шт.

16

5181901

SUPPORT

1шт.

17

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

18

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

18

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

2шт.
