Запчасти Case IH JX1060C (1.33.2/07[02]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (30KM/H) - PIPES (04) - FRONT AXLE & STEERING

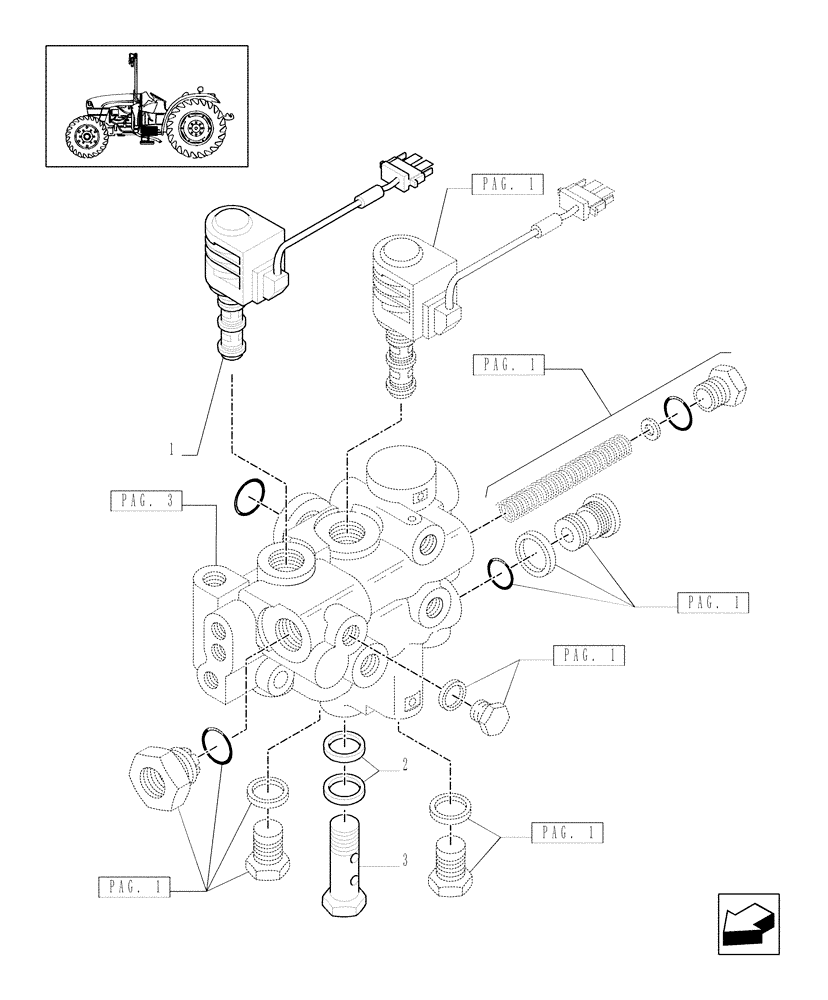

Схема запчастей Case IH JX1060C - (1.33.2/07[02]) - (VAR.326/1-326/2) STANDARD FRONT AXLE W/ ELECTROHYDR. DIFF. LOCK, W/ FRONT BRAKES (30KM/H) - PIPES (04) - FRONT AXLE & STEERING
3
pag. 1
1
2
pag. 1
pag. 1
pag. 3
pag. 1
pag. 1
pag. 1

Артикул

Название

Примечание

Количество

1

5192014

ELECTRO-VALVE,4W - 2p with diode

4WD Engagement, W/Diode

1шт.

2

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

3

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

Выбрано товаров: 3
