Запчасти Case IH JX1060C (1.33.2/03[01]) - (VAR.270) HI-LO 32X16 30 KM/H W/OIL COOLER AND ADJ. STEERING COLUMN - FILLER NECKS (04) - FRONT AXLE & STEERING

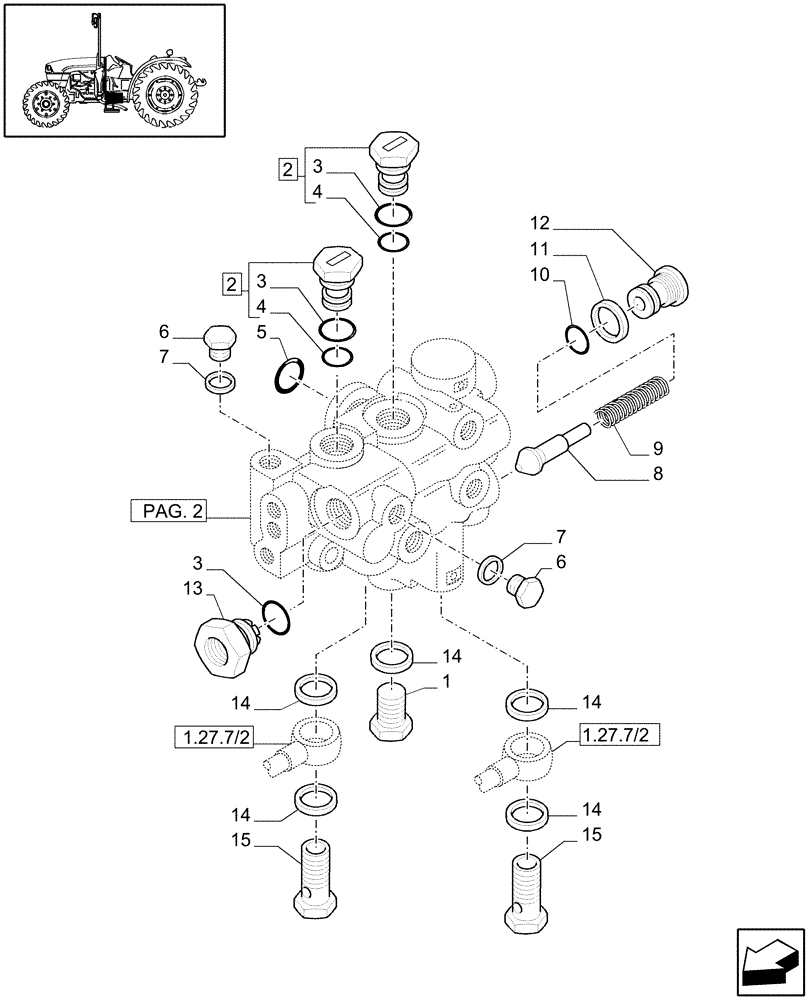

Схема запчастей Case IH JX1060C - (1.33.2/03[01]) - (VAR.270) HI-LO 32X16 30 KM/H W/OIL COOLER AND ADJ. STEERING COLUMN - FILLER NECKS (04) - FRONT AXLE & STEERING
10
6
3
5
4
14
14
14
4
pag. 2
7
14
1
7
6
15
1.27.7/2
12
2
15
13
14
8
11
3
1.27.7/2
2
3
9

Артикул

Название

Примечание

Количество

1

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

2

5154967

PLUG,Hex R0.2

2шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

4

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

5

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

7

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

2шт.

8

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

9

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

10

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20x26

1шт.

12

5168332

PLUG,M20 x 1.5

1шт.

13

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

14

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24

5шт.

15

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

Выбрано товаров: 15
