(1.27.3/01[01]) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJUSTABLE COLUMN WITHOUT CAB - COVER AND PLUGS

Запчасти Case IH JX1060C (1.27.3/01[01]) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJUSTABLE COLUMN WITHOUT CAB - COVER AND PLUGS (03) - TRANSMISSION

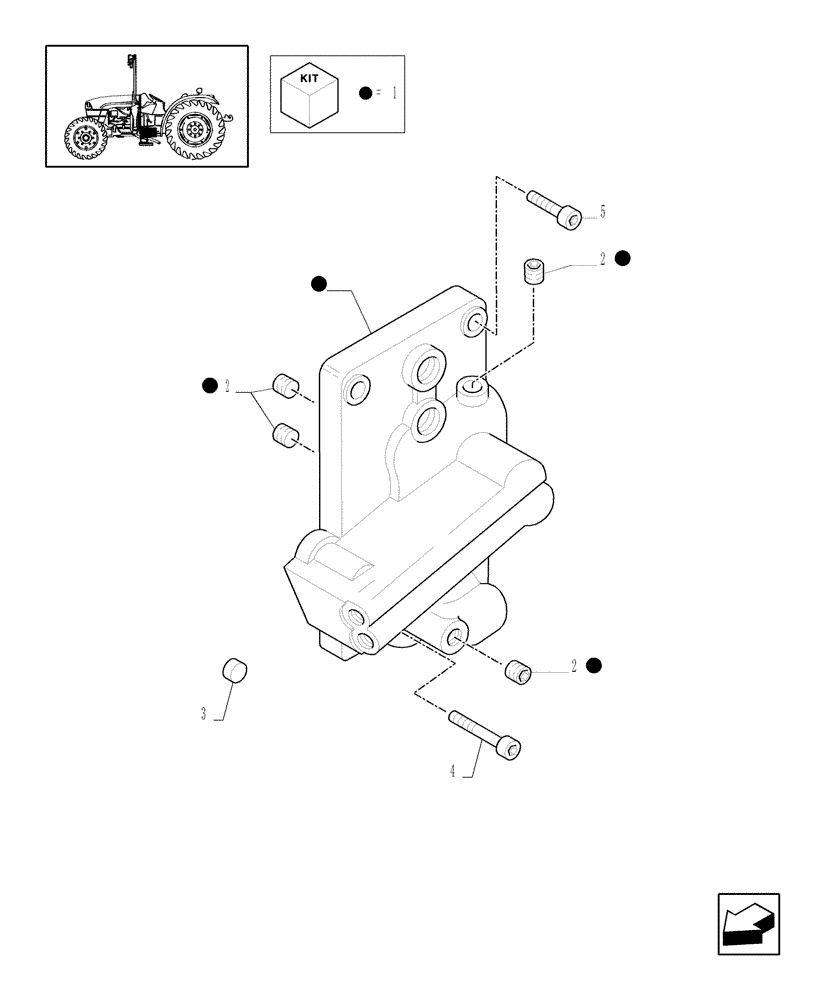

Схема запчастей Case IH JX1060C - (1.27.3/01[01]) - (VAR.138) NA - 8X8 (30KM/H) P. SHUTTLE FOR ADJUSTABLE COLUMN WITHOUT CAB - COVER AND PLUGS (03) - TRANSMISSION
5
3
4
1
2
1
2
1
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5178865

COVER

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

3

14328501

PLUG,M16, Tapered

1шт.

4

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2WD

2шт.

5

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.
