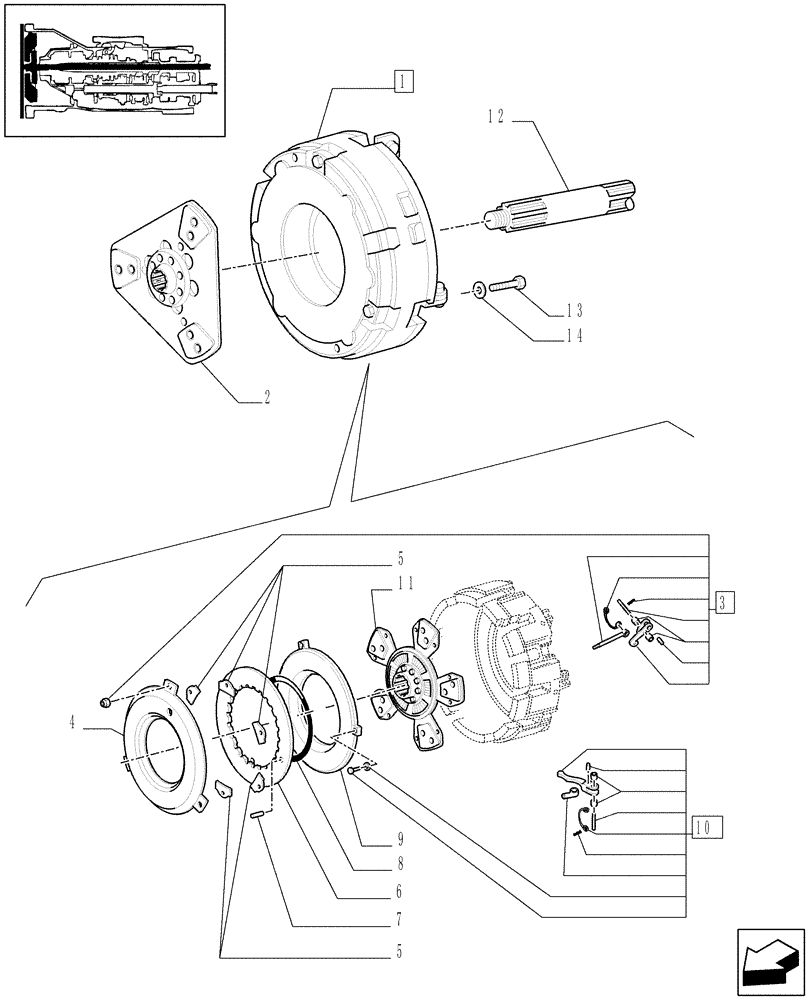

Запчасти Case IH JX1060C (1.25.0[01A]) - CLUTCH - D4941 (03) - TRANSMISSION

1

47134889

CLUTCH,327mm OD

ASSY

1шт.

1

47134889R

REMAN-CLUTCH ASSY

JX1060C, BSN D4941

1шт.

1

47134889C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

.

Kit includes: qty. 1 of- reman 3 pad clutch disc ref. #1, 1 reman clutch pressure plate ref. #1, 1 clutch bearings fig. 126.2(01), I flywheel bearing fig. 0.08.3, 1-instruction sheet

1шт.

1

84589631R

REMAN-CLUTCH KIT

JX1060C (12/03), -D4941

1шт.

1

84589631C

SERVICE KIT

Return Part Number, (Note:use the shipping carton kit was received in to return core parts)

1шт.

2

47134882

CLUTCH PLATE,280mm OD

1шт.

2

47134882R

REMAN-CLUTCH PLATE

JX1060C, BSN D4941

1шт.

2

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

47137138

KIT

1шт.

4

5196792

PRESSURE RING

1шт.

5

5196836

BRACKET

6шт.

6

47137139

SPRING

1шт.

7

9919443

ROLL PIN

1шт.

8

5196835

RING

1шт.

9

9968849

PRESSURE RING

1шт.

10

47137137

KIT

1шт.

11

47134890

CLUTCH PLATE,280mm OD

1шт.

11

47134890R

REMAN-CLUTCH PLATE

TN60VA SPECIAL TRACTOR, w/ SN D4941 (5/04-)

1шт.

11

47134890C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

5177717

SHAFT

1шт.

13

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.
