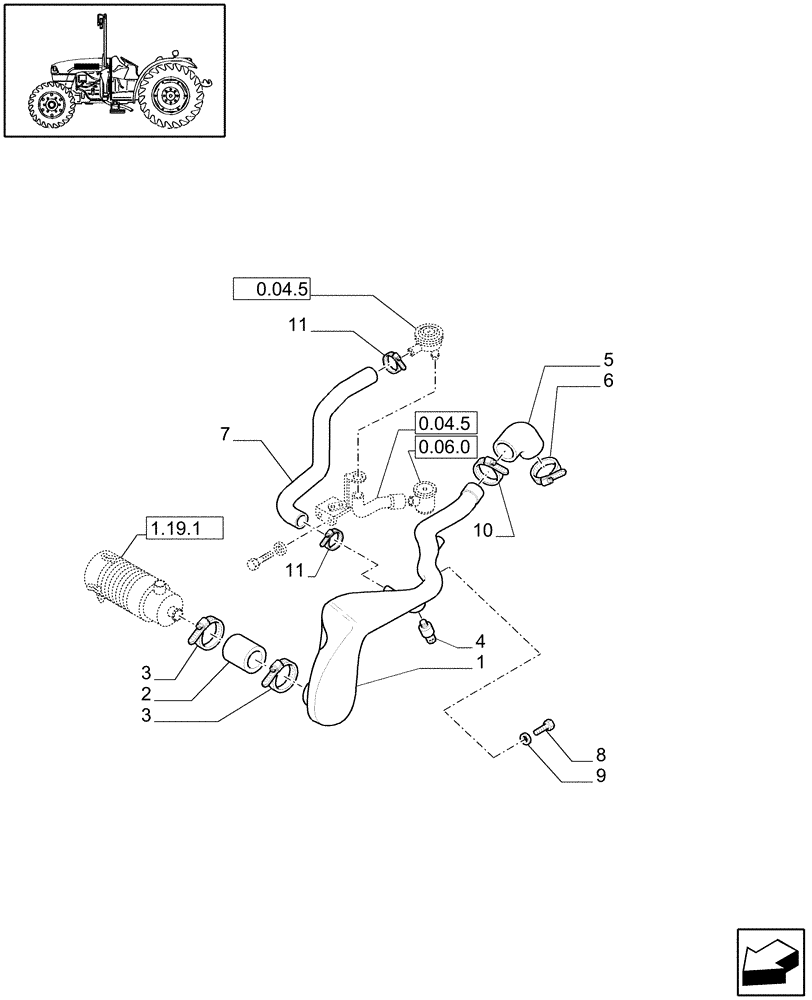

Запчасти Case IH JX1060C (1.19.7[01]) - AIR CLEANER PIPING (02) - ENGINE EQUIPMENT

1

5175167

RIGID TUBE

1шт.

2

5175170

HOSE

1шт.

3

13001190

HOSE CLAMP,80mm - 100mm, Worm Gear

D=80-100

2шт.

4

5138819

INDICATOR

1шт.

5

5175168

HOSE

1шт.

6

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

7

47129297

RUBBER SLEEVE

1шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.

11

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.
