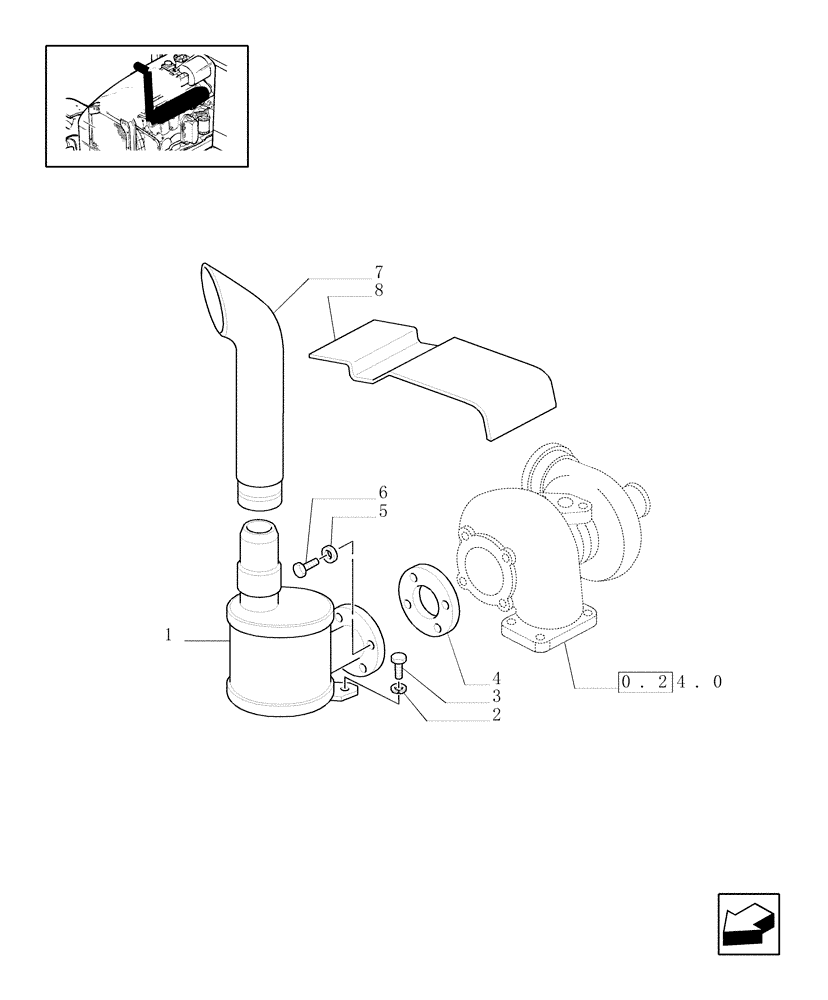

Запчасти Case IH JX100U (1.15.1[03]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS (02) - ENGINE EQUIPMENT

1

5169716

MUFFLER

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

4

98428399

GASKET

1шт.

5

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

6

4840217

BOLT,Hex, M8 x 1.25 x 22mm

M8 x 1.25 x 22, Full Thread

4шт.

7

5170075

EXTENSION

1шт.

7

5173646

EXTENSION

(VAR.857)

1шт.

8

5186023

GUARD

Heat

1шт.
