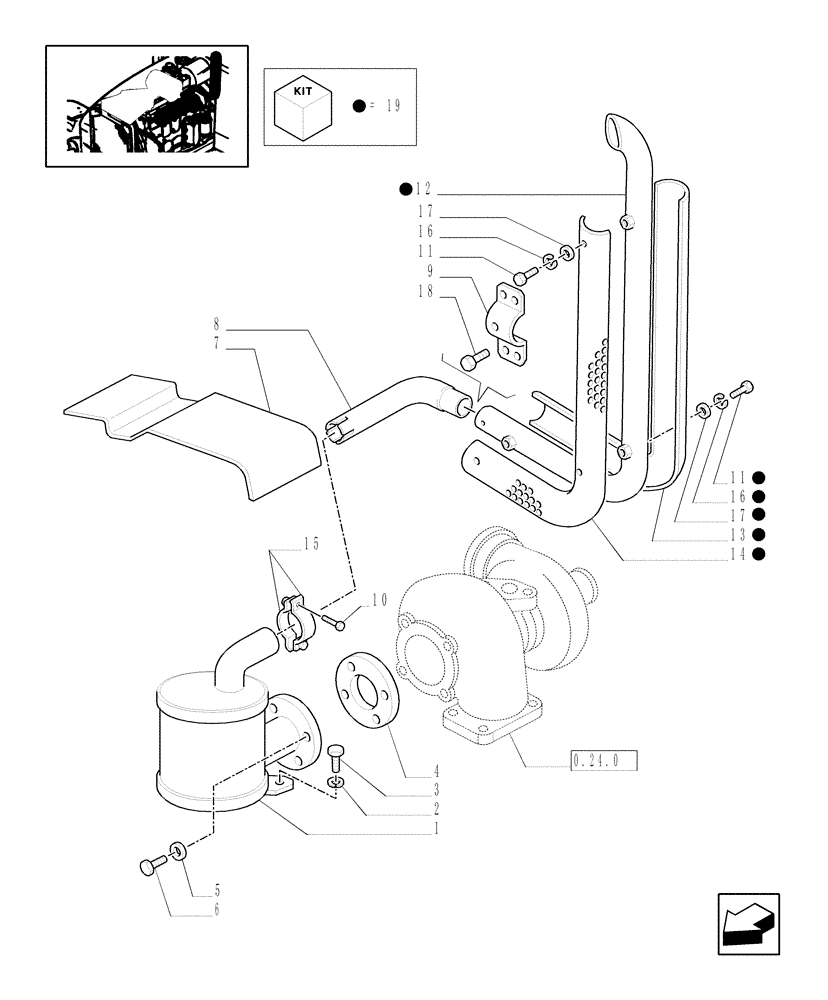

Запчасти Case IH JX100U (1.15.1[02]) - SILENCER (MUFFLER) - W/CAB - GUARDS (02) - ENGINE EQUIPMENT

1

5182593

MUFFLER

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

4

98428399

GASKET

1шт.

5

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

6

4840217

BOLT,Hex, M8 x 1.25 x 22mm

M8 x 1.25 x 22, Full Thread

4шт.

7

5186023

GUARD

1шт.

8

5196929

RIGID TUBE

1шт.

9

47124268

HOSE CLIP

1шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

12

5182537

RIGID TUBE

1шт.

13

5182539

SHIELD

1шт.

14

5182538

SHIELD

1шт.

15

5116798

HOSE CLIP

2шт.

16

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

17

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

18

14306230

SCREW,M8 x 1.25 x 16mm

M8X16

4шт.

19

47125296

EXHAUST SYSTEM PIPE

1шт.
