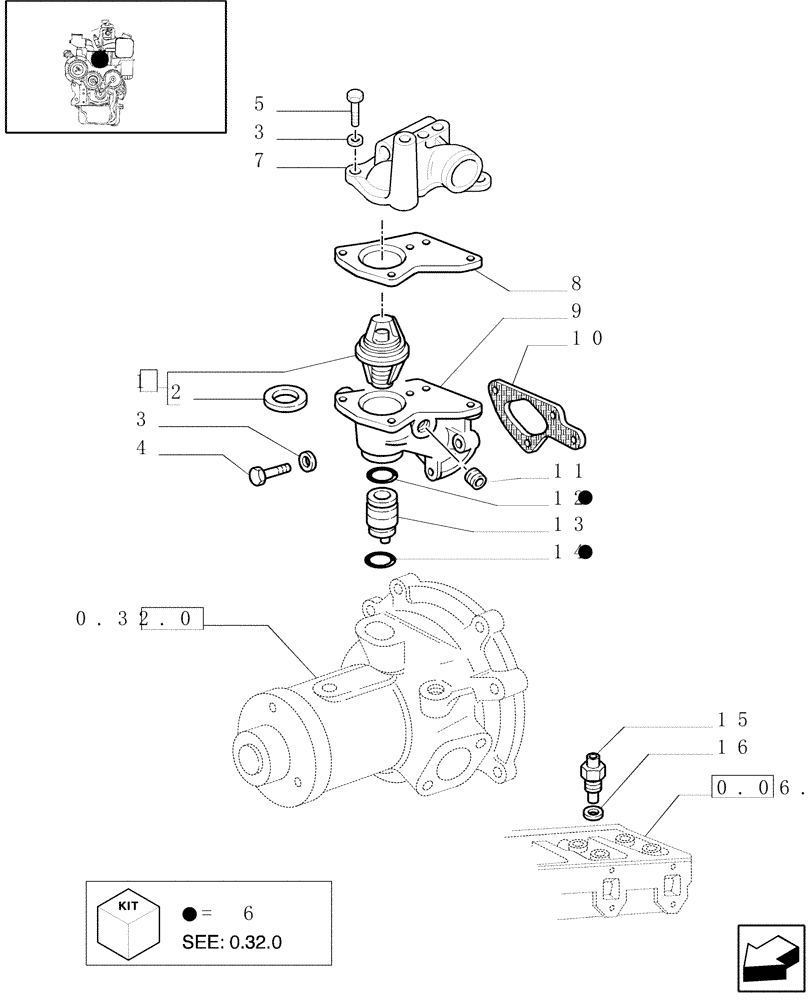

Запчасти Case IH JX100U (0.32.6) - TEMPERATURE CONTROL (THERMOSTAT) (01) - ENGINE

1

98463637

THERMOSTAT

1шт.

2

7303173

GASKET,4.3mm Thk

1шт.

3

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

4

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

5

16045024

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.

6

1940144

KIT, WATER PUMP REPA

1шт.

7

99450534

COVER

1шт.

8

99450535

SEAL

1шт.

9

4823619

BODY

1шт.

10

98400784

GASKET,0.5mm Thk

1шт.

11

500378047

PLUG

M20X1.5X13

1шт.

12

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

13

98415712

HYD CONNECTOR

1шт.

14

14463281

O-RING,0.984" ID x 0.139" Width

1шт.

15

4171667

SENSOR

Coolant

1шт.

16

4858609

WASHER,Brass

16 X22

1шт.
