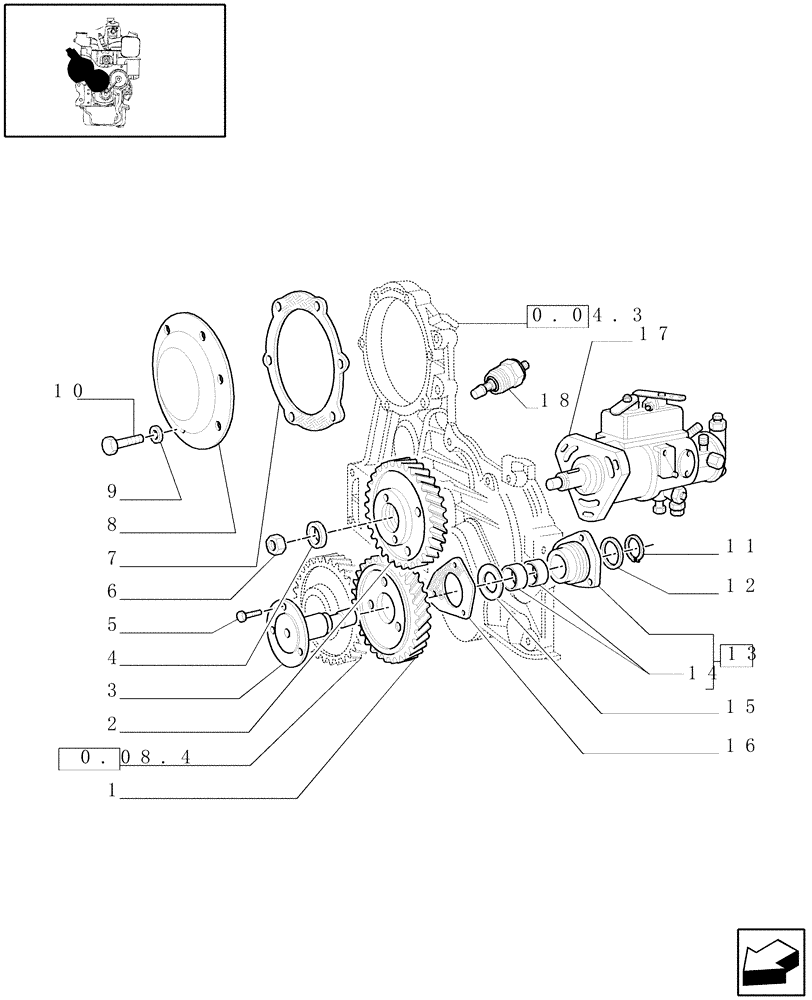

Запчасти Case IH JX100U (0.14.0[02]) - FUEL SYSTEM - INJECTION PUMP (01) - ENGINE

1

4770056

GEAR

1шт.

2

98459487

GEAR

JX70U, JX80U, JX90U

1шт.

2

99448921

GEAR

JX100U

1шт.

3

4784054

SHAFT

1шт.

4

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

5

4798845

BOLT,M8 x 1.25 x 16.50mm

M8 x 1.25 x 16.5

4шт.

6

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

7

98400781

GASKET,0.8mm Thk

1шт.

8

4783048

COVER

1шт.

9

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

6шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.

11

4769420

SNAP RING,33.20mm ID

1шт.

12

4769419

WASHER

1шт.

13

4784055

SUPPORT

1шт.

14

4769418

BUSHING

2шт.

15

4667452

WASHER,37.1mm ID x 55mm OD x 1.5mm Thk

1шт.

16

98400787

GASKET,0.8mm Thk

2шт.

17

99472103

FUEL INJECTION PUMP

JX70U

1шт.

Incl. P/N 18

1шт.

17

99475604

FUEL INJECTION PUMP

JX90U

1шт.

Incl. P/N 18

1шт.

17

99472101

FUEL INJECTION PUMP

JX80U

1шт.

Incl. P/N 18

1шт.

17

99475605

FUEL INJECTION PUMP

JX100U

1шт.

Incl. P/N 18

1шт.

17

500324967

FUEL INJECTION PUMP

JX90U, VAR. 007

1шт.

Incl. P/N 18

1шт.

17

500324958

FUEL INJECTION PUMP

JX70U, VAR. 007

1шт.

Incl. P/N 18

1шт.

17

500324968

FUEL INJECTION PUMP

JX100U, VAR.007/1

1шт.

Incl. P/N 18

1шт.

17

500324968R

REMAN-FUEL INJ PUMP

JX100U (5/02-)

1шт.

17

500324968C

CORE-FUEL INJ PUMP

Return Number

1шт.

17

500324961

FUEL INJECTION PUMP

JX80U, VAR. 007

1шт.

Incl. P/N 18

1шт.

18

99478110

SOLENOID,24V

1шт.

18

2852741

SOLENOID

12V

1шт.
