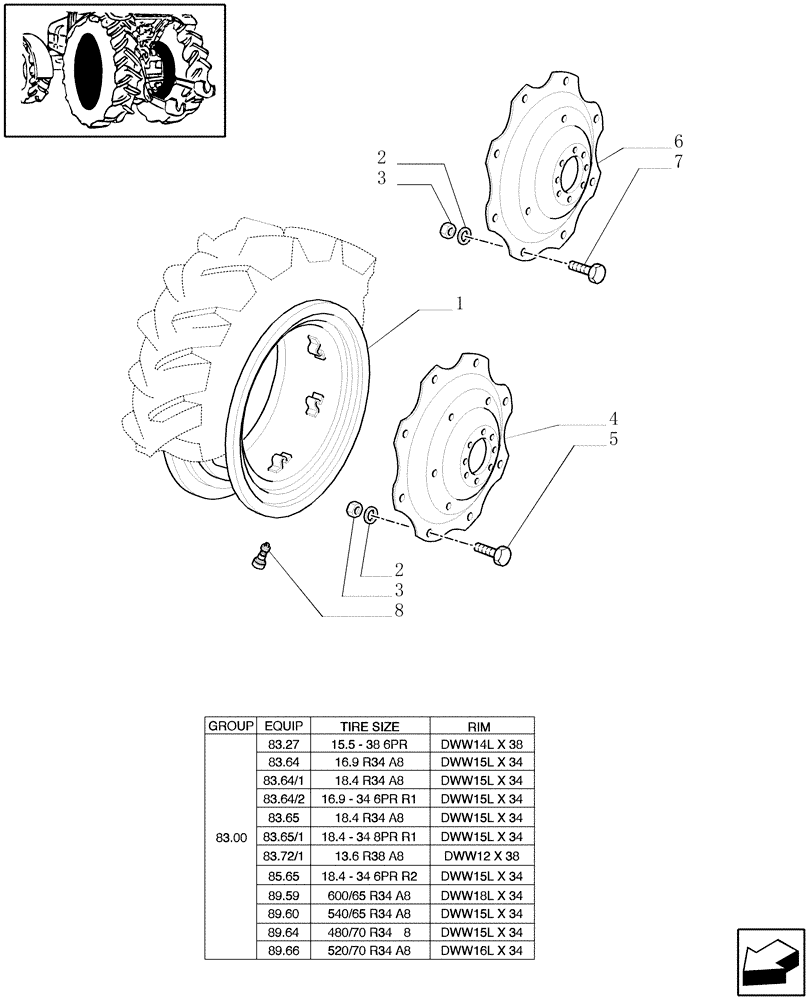

Запчасти Case IH JX100U (83.00[03]) - RIM (DRIVE WHEELS) (11) - WHEELS/TRACKS

1

47128186

RIM,DWW15Lx34, 8 Bolts, CASE Silver

DWW15L x 34

2шт.

1

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12 x 38, JX80U, JX90U, JX100U

2шт.

1

47128187

RIM,DWW16Lx34, 8 Bolts, Case IH Silver

DWW16L X 34, JX90U, JX100U

2шт.

1

47128188

RIM

DWW14L X 38

2шт.

1

47128189

RIM

DWW18L X 34, JX90U, JX100U

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

47128170

WHEEL DISC,717.5mm DIA, 8 Bolts, CASE Silver

2шт.

DIA.INSIDE mm.717,5

1шт.

5

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

16шт.

6

47128171

WHEEL DISC,818.4mm Dia, 8 Bolts , Case IH Silver

2шт.

DIA.INSIDE mm.818,4

1шт.

7

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

For Rim DWW14L x 38

16шт.

7

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

For Rim DWW12 x 38

16шт.

8

85700224

VALVE STEM

2шт.
