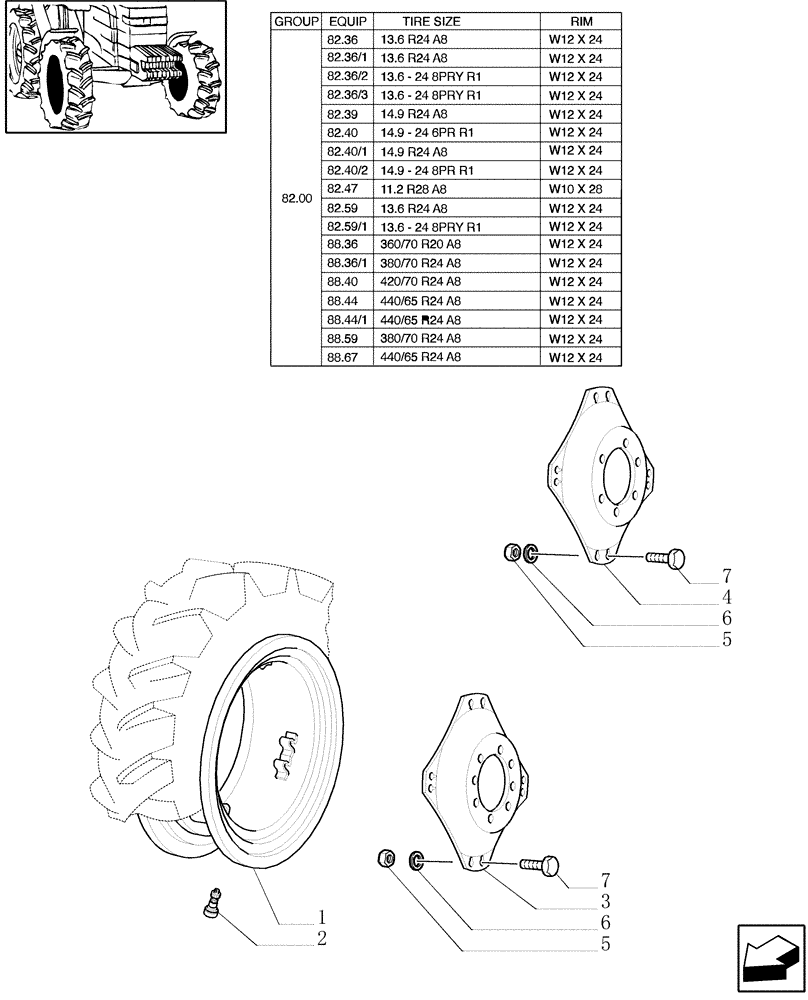

Запчасти Case IH JX100U (82.00[03]) - DRIVE WHEEL RIM (4WD) (11) - WHEELS/TRACKS

1

47128185

RIM,W10 x 28, 8 Bolts, CASE Silver

W10 X 28

2шт.

1

47128184

RIM

W12 X 24

2шт.

2

85700224

VALVE STEM

2шт.

3

47128164

WHEEL DISC

JX80U, JX90U, JX100U

2шт.

4

47128165

WHEEL DISC

JX80U

2шт.

DIA.INSIDE mm.515

1шт.

4

47128168

WHEEL DISC,616mm DIA, 6 Bolts, CASE Silver

JX80U

2шт.

DIA.INSIDE mm.616

1шт.

5

10790524

NUT,M16 x 1.5

16шт.

6

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6

16шт.

7

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

8

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.
