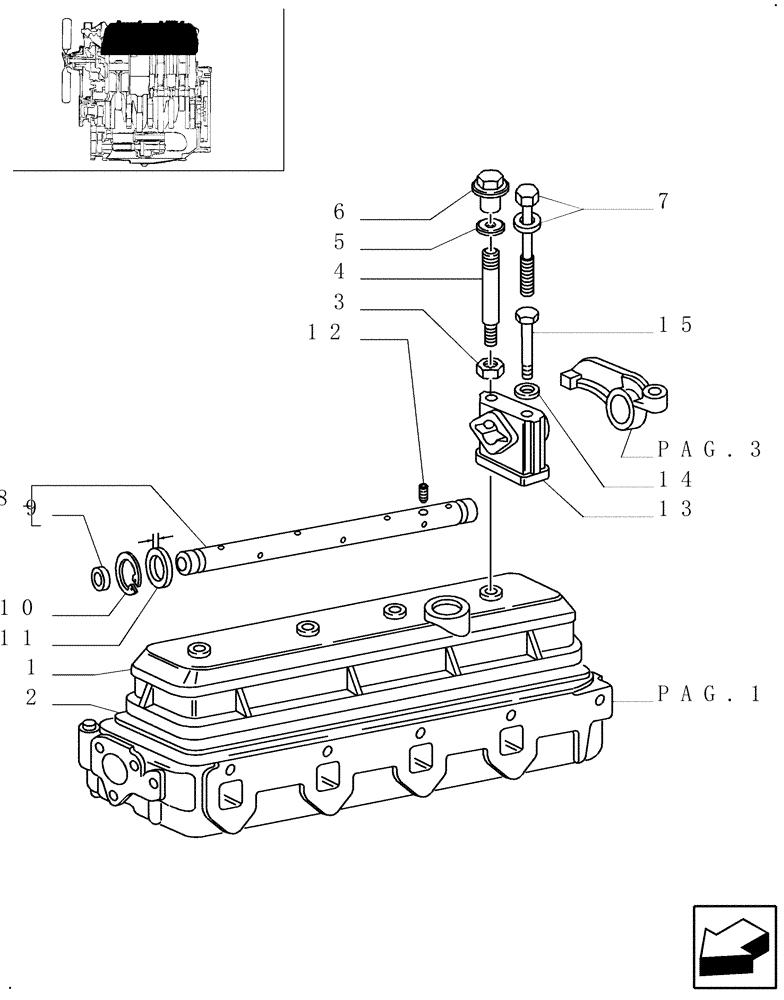

Запчасти Case IH JX100U (0.06.0[02]) - CYLINDER HEAD (01) - ENGINE

1

99453027

COVER

1шт.

2

500301351

GASKET

1шт.

3

16100821

NUT,M8, Cl 10

4шт.

4

98458149

STUD,M8 x 88mm

M8 x 1.25 x 76

4шт.

5

98416134

SEALING WASHER,13mm ID x 24mm OD x 1.5mm Thk

13X24

4шт.

6

98417659

NUT,Hex Flg, M8, 1.25mm Pitch

M8

4шт.

7

500380521

STUD,M5 x 12 x 45mm

M8X1.25X45, JX90U, JX100U

8шт.

8

4842403

SHAFT

1шт.

9

14328301

PLUG,M12, Tapered

2шт.

10

11066676

SNAP RING,M18, Ext

2шт.

11

4570798

WASHER

0.7 mm

4шт.

11

4570799

WASHER

0.5 mm

4шт.

12

4846851

SCREW,M6 x 25mm

1шт.

13

4601295

SUPPORT

4шт.

14

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

8шт.

15

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

JX70U, JX80U, JX100U

4шт.
