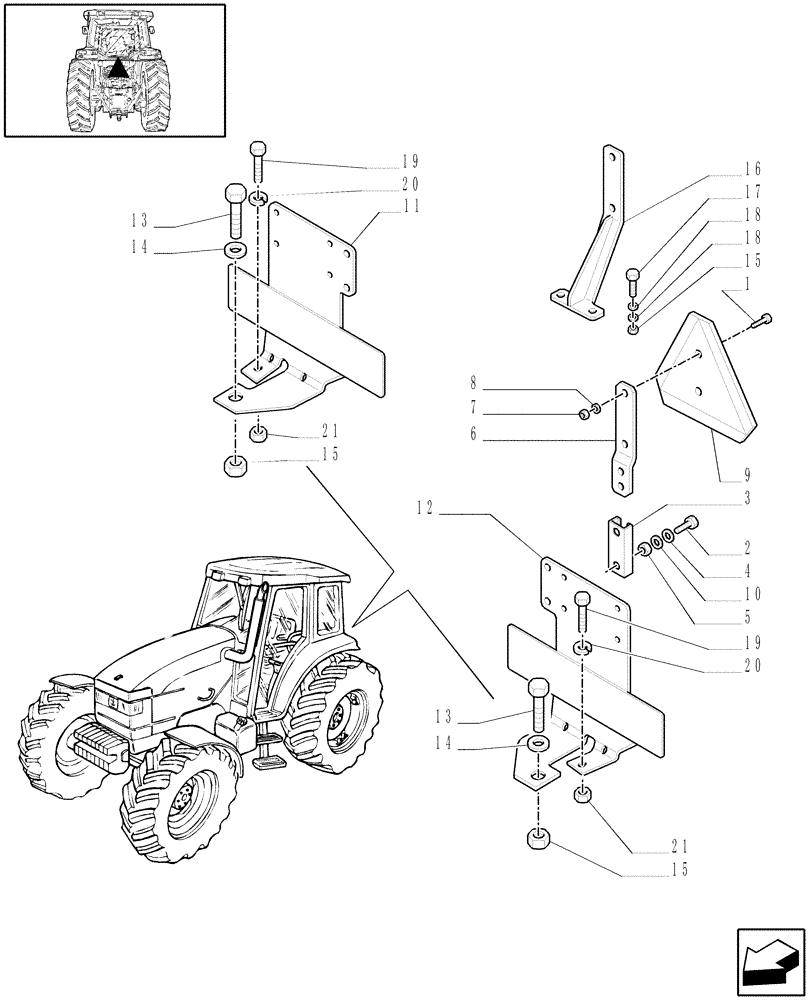

Запчасти Case IH JX100U (1.99.3/01) - (VAR.007/1) NASO - RETROREFLECTOR SUPPORT (10) - OPERATORS PLATFORM/CAB

1

10376411

SCREW

M6X10, W/CAB

2шт.

1

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

L/Cab

2шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

3

5148517

SUPPORT

1шт.

4

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16100821

NUT,M8, Cl 10

2шт.

6

5148516

BRACKET

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

8

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

9

86400906

WARNING TRIANGLE

W/CAB

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

47129828

SUPPORT

RH, W/CAB, Serial Range: -C4926

1шт.

12

47129827

SUPPORT

LH, W/CAB

1шт.

13

11112424

SCREW,Hex, M12 x 30mm, Cl 8.8, Full Thd

W/Cab

2шт.

14

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

15

11702914

NUT,M12, Cl 8

2шт.

16

47123030

SUPPORT

L/CAB

1шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

L/Cab

2шт.

18

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

4шт.

19

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

20

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
