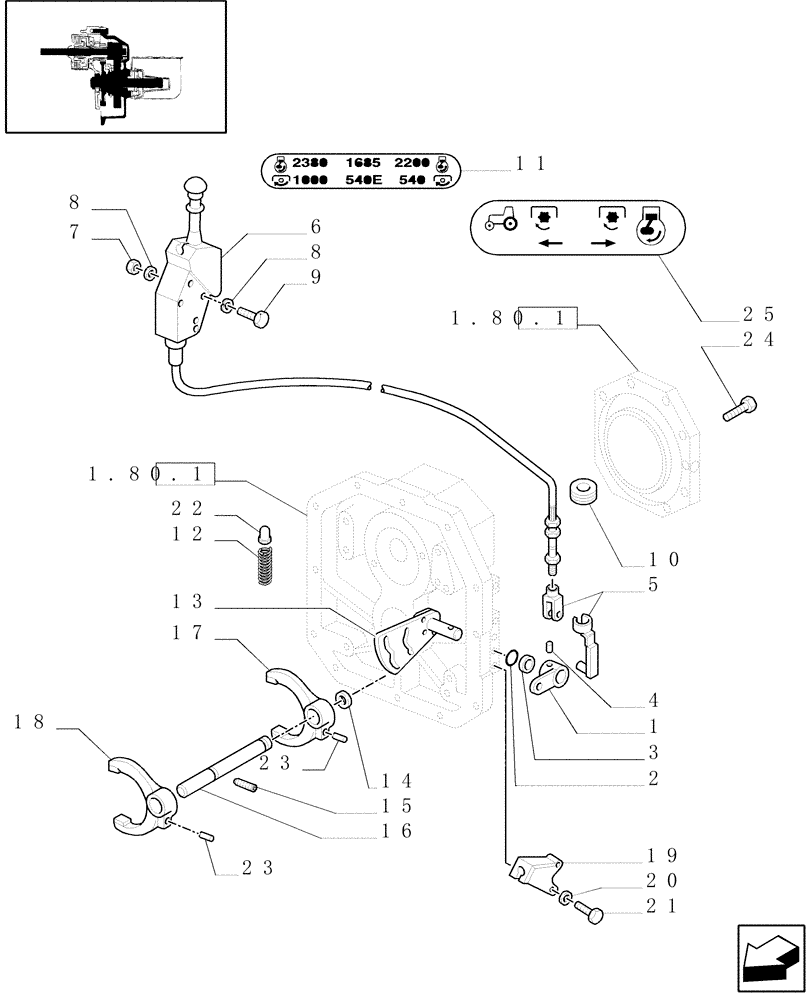

Запчасти Case IH JX100U (1.96.3/02) - (VAR.729/1) SYNCHRO MESH GEARED POWER TAKE-OFF 540 - 750 - 1000 RPM - CONTROL PARTS (10) - OPERATORS PLATFORM/CAB

1

5180999

LEVER

1шт.

2

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

3

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

4

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

5

5132588

CLEVIS

1шт.

6

5185988

FLEXIBLE CONTROL

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

8

14496404

WASHER,M6 x 12 x 2 Thk

6шт.

9

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

10

10398580

GROMMET,22mm ID x 30mm GRV ø x 38mm OD x 13mm Thk

1шт.

11

82007808

DECAL

1шт.

12

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

13

5162792

SELECTOR

1шт.

14

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

15

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

16

5162788

ROD

1шт.

17

5162814

SHIFTER FORK

1шт.

18

5162812

SHIFTER FORK

1шт.

19

5180998

BRACKET

1шт.

20

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

21

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

22

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

23

5154545

PIN,10mm OD x 25mm L

10X25

2шт.

24

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

25

47125541

DECAL

1шт.
