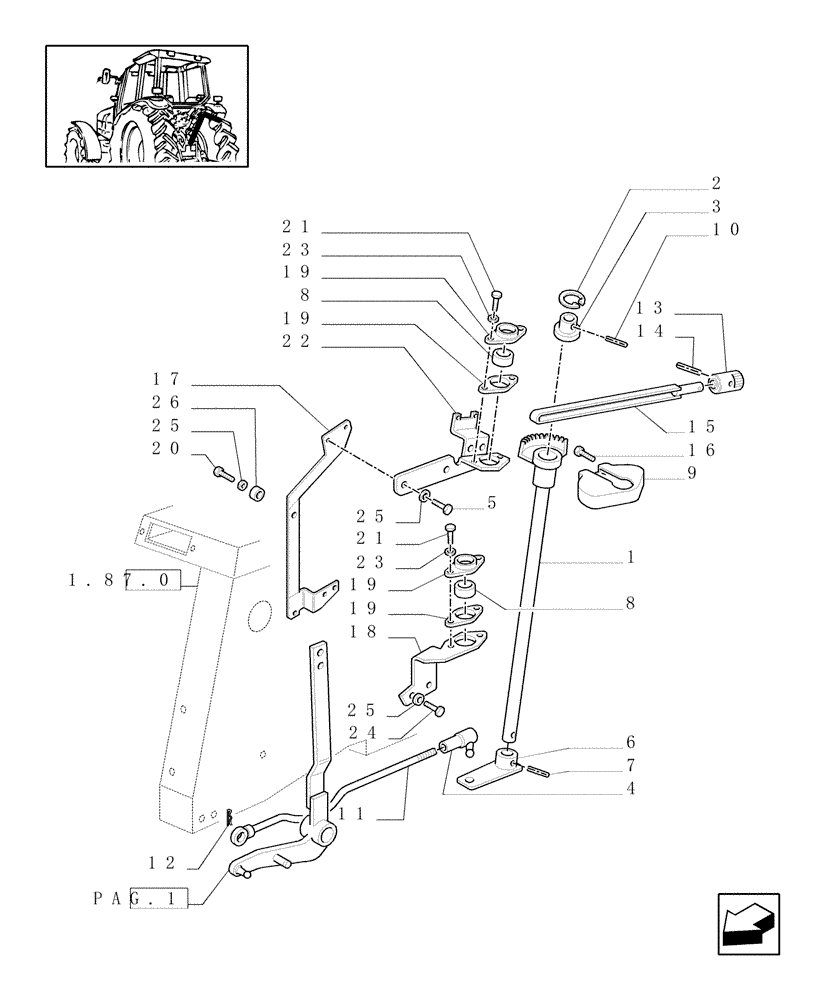

Запчасти Case IH JX100U (1.96.1[02]) - CAB - HYDRAULIC LIFT OUTER CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5170979

CONTROL SHAFT

1шт.

2

11059974

SNAP RING,M40, Int

1шт.

3

5171002

HUB

1шт.

4

15152690

BALL JOINT

, Serial Range: -1329026

1шт.

4

47135130

BALL JOINT

, Start Serial: 1329027

1шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

6

5172754

LEVER

1шт.

7

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

8

5127536

BUSHING,20.5mm ID x 32mm OD

2шт.

9

5171028

COVER

1шт.

10

14601374

LOCK PIN,M5 x 30, Slotted

1шт.

11

5171241

LEVER

1шт.

12

10796401

COTTER PIN,M3.2 x 18

1шт.

13

5144119

KNOB

1шт.

14

14164470

LOCK PIN,M4 x 32, Slotted

1шт.

15

5189838

LEVER

1шт.

16

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

17

47125327

SUPPORT

1шт.

18

5195733

SUPPORT

1шт.

19

5110722

CUP

4шт.

20

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

21

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

22

47125328

SUPPORT

1шт.

23

10516474

LOCK WASHER

M6

4шт.

24

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

25

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

7шт.

26

13605711

SPACER

8.5X18X5

1шт.
