Запчасти Case IH JX100U (1.96.0/04) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDRAULIC PTO - CONTROL LEVERS (10) - OPERATORS PLATFORM/CAB

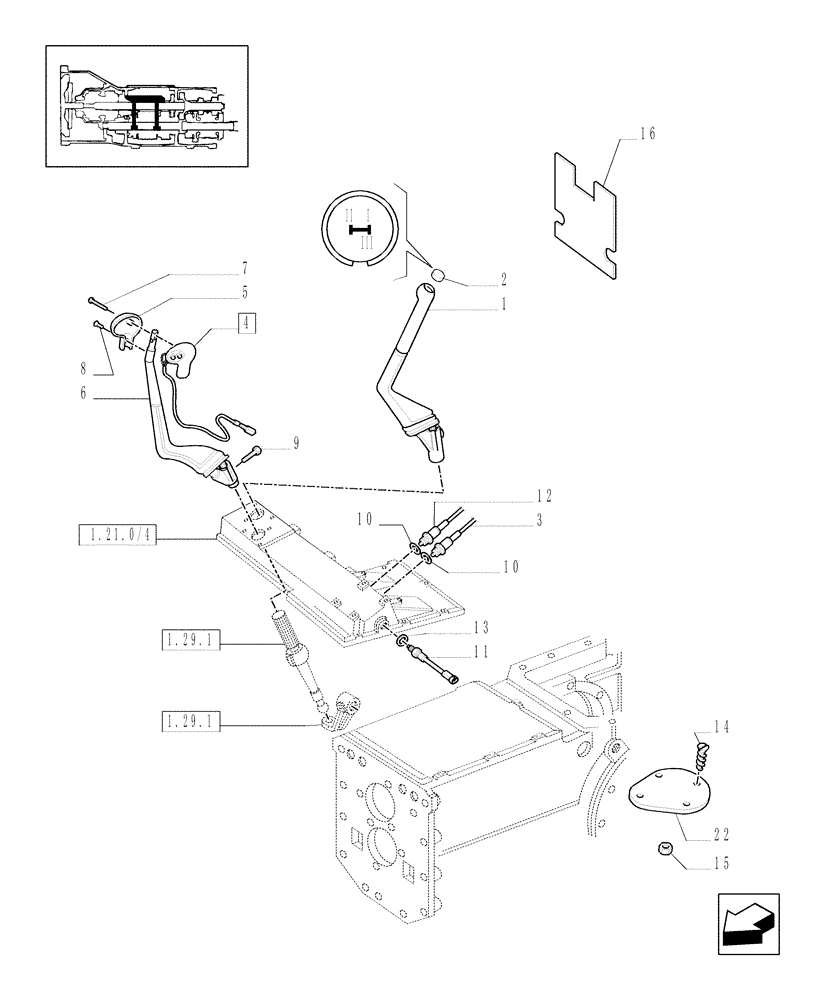

Схема запчастей Case IH JX100U - (1.96.0/04) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDRAULIC PTO - CONTROL LEVERS (10) - OPERATORS PLATFORM/CAB
6
ii
7
10
9
4
5
8
12
2
10
13
1
i
15
iii
22
1.29.1
11
1.29.1
3
1.21.0/4
16
14

Артикул

Название

Примечание

Количество

1

5167008

LEVER

RH

1шт.

2

5132272

INSERT

1шт.

3

47132568

SWITCH

Grey

1шт.

4

5181203

KNOB

LH

1шт.

5

5165394

KNOB

RH

1шт.

6

5166996

LEVER

1шт.

7

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

8

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

9

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

10

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14X20X1,5

2шт.

11

47132567

SWITCH

Black

1шт.

12

47132569

SWITCH

Green

1шт.

13

10279760

SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk

1шт.

14

15905501

SELF-TAP SCREW,Pan Hd, M6.3 x 22

W/CAB, JX90U, JX100U

4шт.

14

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

L/CAB, JX90U, JX100U

4шт.

15

14115980

NUT

L/CAB, JX90U, JX100U

4шт.

16

47125156

INSULATOR

1шт.

17

5176213

COVER

JX90U, JX100U

1шт.

Выбрано товаров: 18
