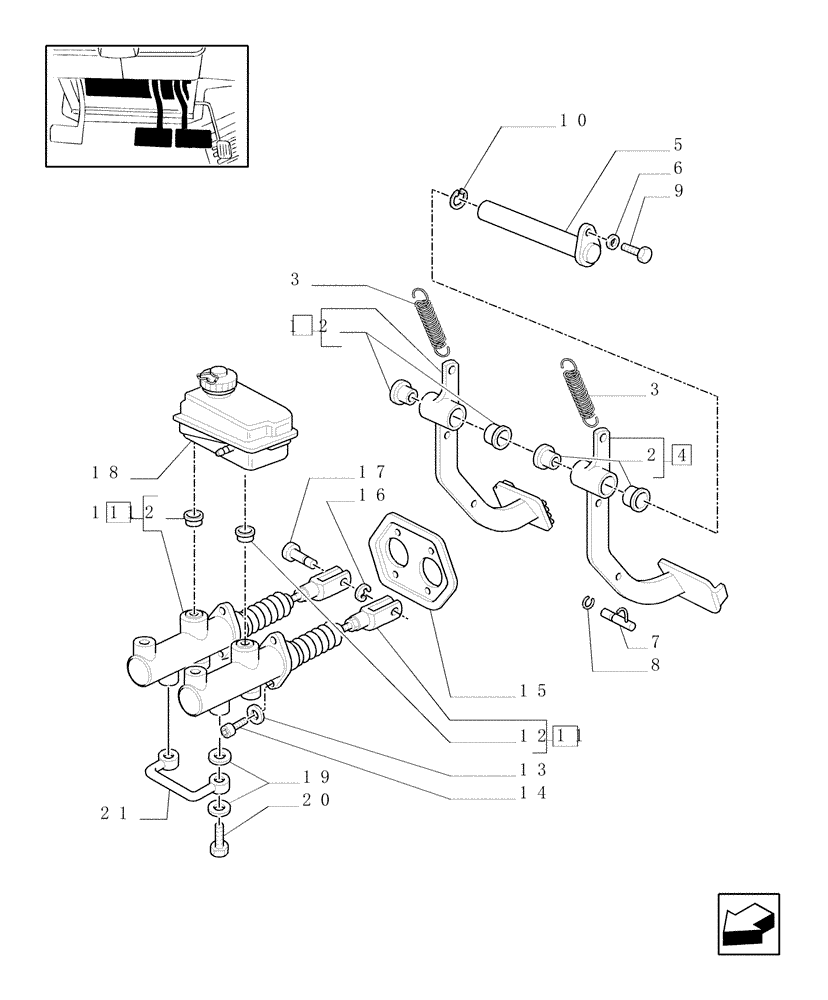

Запчасти Case IH JX100U (1.95.0) - BRAKES - PEDALS & CYLINDERS (10) - OPERATORS PLATFORM/CAB

1

82001585

PEDAL

RH

1шт.

2

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

3

5153180

SPRING,21mm OD x 84mm L

2шт.

4

82001584

PEDAL

LH

1шт.

5

82030041

PIN,25mm OD x 153mm L

1шт.

6

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.

7

5142152

LOCK PIN

1шт.

8

11088176

CIRCLIP,M11

1шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

10

87790533

SNAP RING

1шт.

11

82018664

MASTER CYLINDER

2шт.

12

9966201

GASKET

2шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

14

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

5155901

RETAINER

1шт.

16

11064176

CLIP,M10 x 8mm

M10 x 8 x 1.05

2шт.

17

5155381

PIN,9.85mm OD x 28mm L

2шт.

18

82003369

BRAKE FLUID TANK

Brake Fluid, Cap is P/N 85806176

1шт.

19

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1.5

4шт.

20

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

21

5155701

TUBE

1шт.
