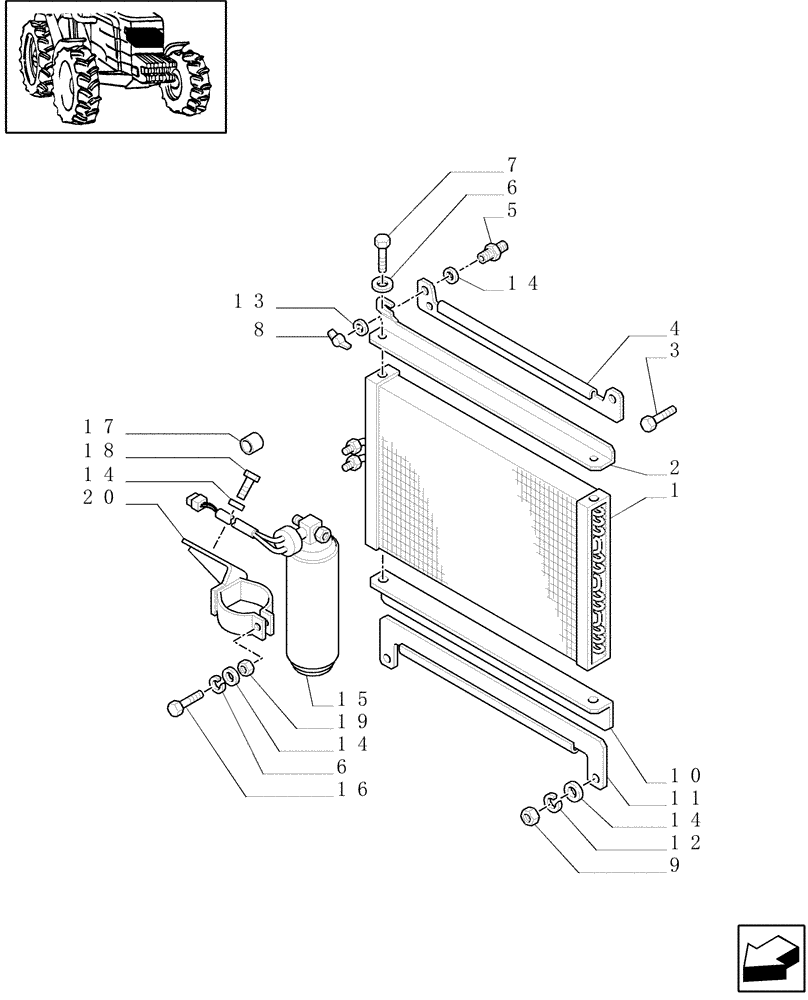

Запчасти Case IH JX100U (1.94.2/01[01]) - (VAR.641-623) AIR CONDITIONING - RADIATOR & FILTER (10) - OPERATORS PLATFORM/CAB

1

5166770

CONDENSER

1шт.

2

5174194

BRACKET

Upper

1шт.

3

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

4

5168627

BRACKET

Upper

1шт.

5

5174191

SCREW

M8

1шт.

6

10516474

LOCK WASHER

10шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

10102004

WING NUT

M8X1.25

1шт.

9

16100821

NUT,M8, Cl 10

2шт.

10

5168629

BRACKET

Lower

1шт.

11

5168628

BRACKET

Lower

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

13550314

WASHER

D=8X18

2шт.

15

5165615

RECEIVER-DRYER

1шт.

Valid with JX70U Model

1шт.

16

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

17

4959573

WASHER

8.5X16X6

2шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

20

5194613

BRACKET

1шт.
