Запчасти Case IH JX100U (1.93.6) - CAB - REARVIEW MIRROR - SUN CURTAIN - LICENSE PLATE SUPPORT (10) - OPERATORS PLATFORM/CAB

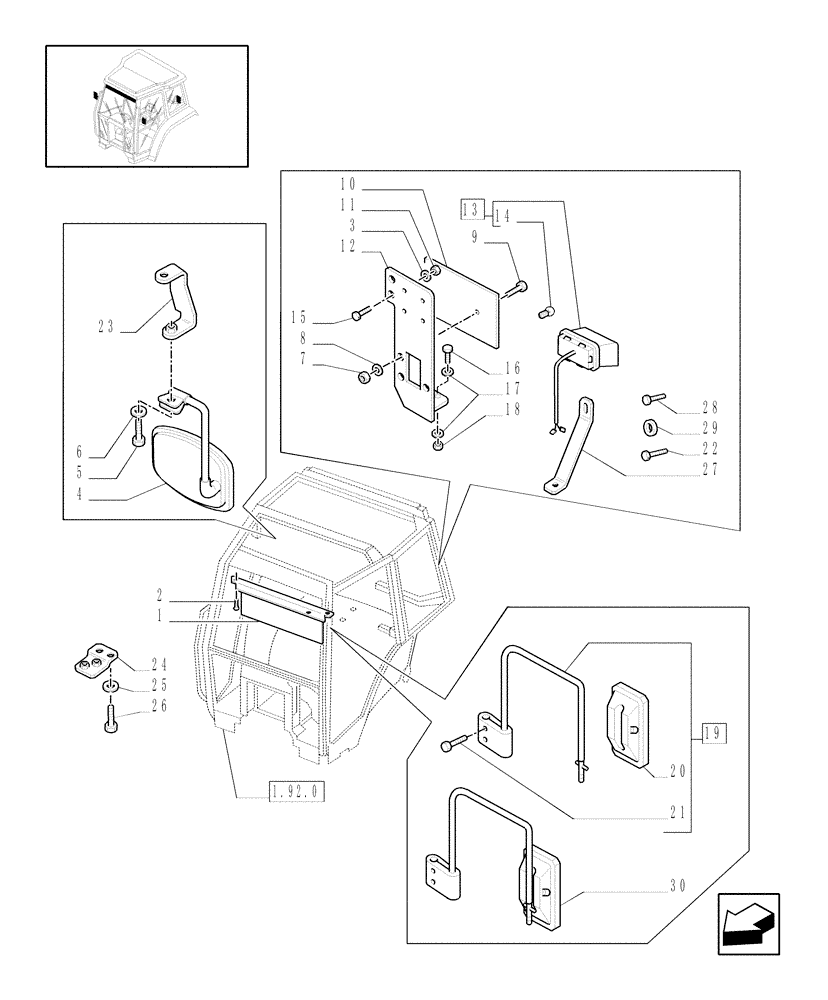

Схема запчастей Case IH JX100U - (1.93.6) - CAB - REARVIEW MIRROR - SUN CURTAIN - LICENSE PLATE SUPPORT (10) - OPERATORS PLATFORM/CAB
4
10
29
13
21
6
25
26
15
17
23
22
7
18
3
19
9
1.92.0
11
28
14
20
24
2
1
27
16
8
30
12
5

Артикул

Название

Примечание

Количество

1

5176441

SUNSHADE

1шт.

2

13208227

SCREW,Pan Hd, M4 x 16mm, Cl 8.8

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

3

82011888

WASHER

8,4X60X2,5

1шт.

4

82007377

REAR VIEW MIRROR

1шт.

5

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

1шт.

6

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

10

5170366

PLATE

1шт.

11

16100821

NUT,M8, Cl 10

1шт.

12

82030285

SUPPORT

1шт.

13

82000705

NUMBER PLATE LAMP,12V, 10W

1шт.

14

81867061

BULB,12V, 21W

1шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

16

11112224

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

17

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

18

12164911

NUT,M12 x 1.75, Cl 8

1шт.

19

5194625

REAR VIEW MIRROR

LH, Serial Range: -C4899

1шт.

19

5194627

REAR VIEW MIRROR

RH, Serial Range: -C4899

1шт.

20

5165333

REAR VIEW MIRROR

2шт.

21

5150118

HEX SOC SCREW,M6 x 25mm

4шт.

22

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

1шт.

23

47125133

BRACKET

, Serial Range: -1326835

1шт.

24

47123906

BRACKET

RH

1шт.

24

47123913

BRACKET

LH, Serial Range: -1326835

1шт.

25

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

, Serial Range: -1326835

4шт.

26

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

, Serial Range: -1326835

4шт.

27

47129829

BRACKET

1шт.

28

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

29

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

30

47132574

REAR VIEW MIRROR

LH, Start Serial: D4899

1шт.

30

47132575

REAR VIEW MIRROR

RH, Start Serial: D4899

1шт.

Выбрано товаров: 34
