Запчасти Case IH JX100U (1.91.1/05) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDR. PTO - CONTROL UNIT & SWITCHES (10) - OPERATORS PLATFORM/CAB

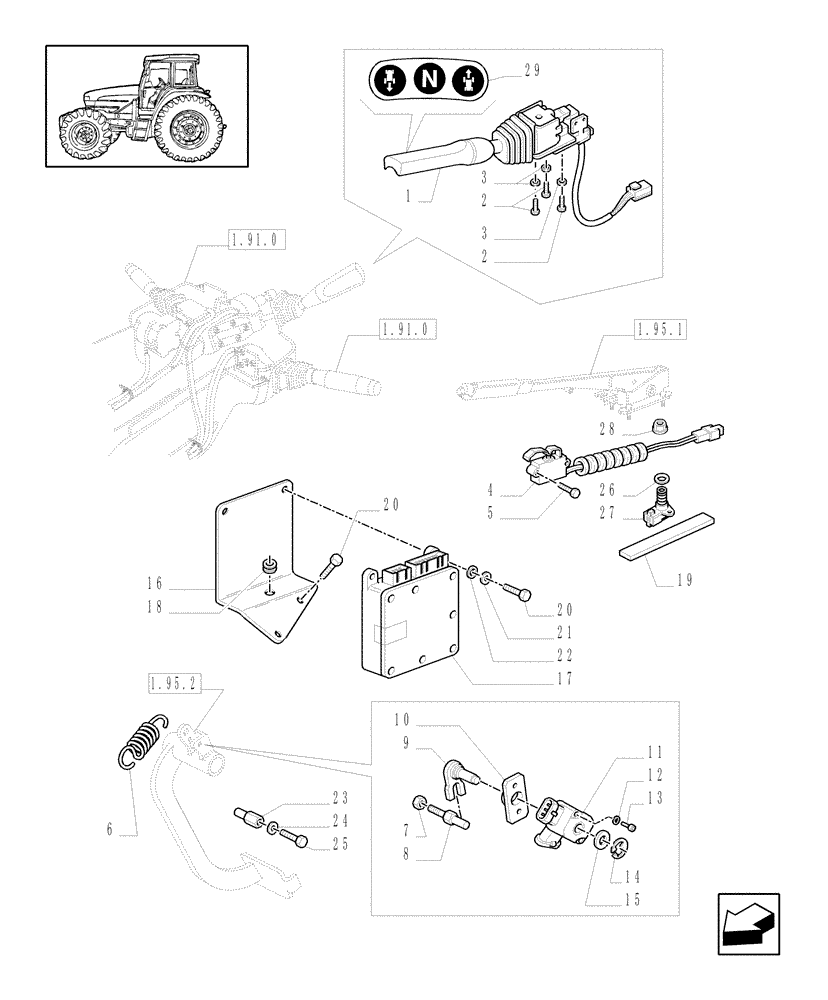

Схема запчастей Case IH JX100U - (1.91.1/05) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDR. PTO - CONTROL UNIT & SWITCHES (10) - OPERATORS PLATFORM/CAB
2
19
13
1.95.1
11
3
1
20
24
10
4
7
9
5
14
21
20
15
28
16
29
2
6
27
18
23
1.91.0
1.91.0
8
3
1.95.2
22
17
12
26
25

Артикул

Название

Примечание

Количество

1

82034514

SWITCH ASSY

W/Cab, Forward/Reverse

1шт.

2

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

W/Cab

3шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

W/Cab

3шт.

4

82005257

SWITCH ASSY

W/CAB, 3 wires, Serial Range: -1305008

1шт.

5

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

W/CAB, Serial Range: -1305008

2шт.

6

5119832

SPRING,Cylindrical, 32mm OD x 88mm L

1шт.

7

12574211

NUT,M6 x 1, Cl 8

1шт.

8

87303140

PIN,6mm OD x 34mm L

1шт.

9

87303139

YOKE

1шт.

10

81864090

RETAINER

W/CAB

1шт.

11

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

With Cab, Rotary Position Sensor

1шт.

12

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

W/Cab

2шт.

13

15210624

BOLT,Hex, M4 x 35mm, Cl 8.8, Full Thd

W/CAB

2шт.

14

11087871

CIRCLIP,M7

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

5184513

BRACKET

1шт.

17

47130891

ECU

1шт.

17

47130891R

REMAN ELECT CONTROL

JX70U, JX80U, JX90U, JX100U, CASE IH TRACTOR

1шт.

17

47130891C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

5175382

RUBBER RING

1шт.

19

5166332

INSULATOR,20mm W x 190mm L x 1mm Thk

1шт.

20

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

21

10516474

LOCK WASHER

D=6

2шт.

22

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

23

5186201

PIN,10mm OD x 30mm L

1шт.

24

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

25

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

26

47129277

SPACER

, Start Serial: 1305009

1шт.

27

5195039

SWITCH

Hand Brake, Start Serial: 1305009

1шт.

28

5198051

NUT

1шт.

29

87364176

DECAL

1шт.

Выбрано товаров: 31
