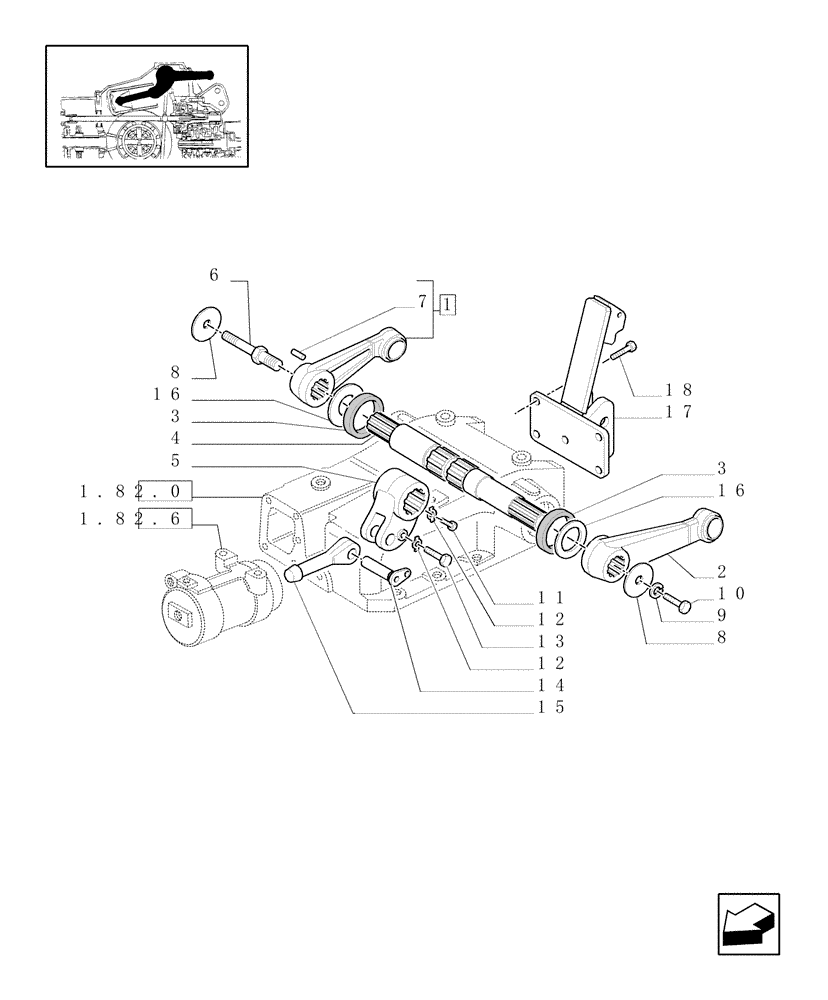

Запчасти Case IH JX100U (1.82.8) - LIFT - LIFT ARMS & SUPPORT (07) - HYDRAULIC SYSTEM

1

5171471

LIFT ARM

RH

1шт.

2

5123957

LIFT ARM

LH

1шт.

3

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

55X70X8

2шт.

4

5117187

ROCKSHAFT,488mm L, 48T, 42T

1шт.

5

5165510

ARM

1шт.

6

5176285

BOLT,M10 X 1.25 X 23mm - M14 X 1.25 X 30mm

M14X1.5 - M10X1.25X62

1шт.

7

10335010

DOWEL,M5 x 22

1шт.

8

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

9

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

10

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

11

5117190

SET SCREW,M10 x 1.25 x 23mm

M10X1.25X23

1шт.

12

14198810

LOCKING PLATE,M10

2шт.

13

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

14

5122356

PIN,30mm OD x 74mm L

1шт.

15

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

16

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

17

5175201

SUPPORT

1шт.

18

11394321

BOLT,Hex, M14 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

18

11408324

BOLT,Hex, M14 x 1.5 x 35, 8.8, Full Thd

1шт.
