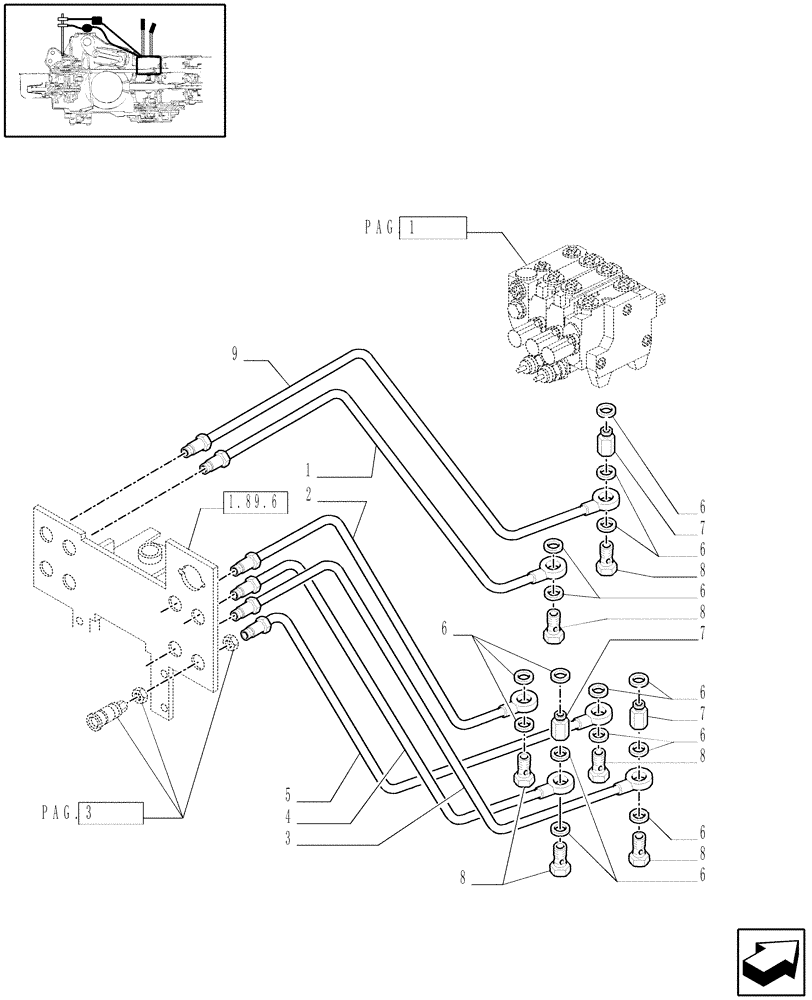

Запчасти Case IH JX100U (1.82.7/14[02]) - (VAR.419) THREE CONTROL VALVES BOSCH - PIPES & CONTROL VALVES (07) - HYDRAULIC SYSTEM

1

47123641

HYD TUBE

5/16"-18X1.25

1шт.

2

47123638

HYD TUBE

502.2mm L.

1шт.

3

47123637

TUBE

570.5mm L.

1шт.

4

47123639

HYD TUBE

539.4mm L.

1шт.

5

47123640

HYD TUBE

459.9mm L.

1шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

18шт.

7

5128338

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

6шт.

9

47123642

HYD TUBE

1шт.
